Large Animal Anesthesia Machine

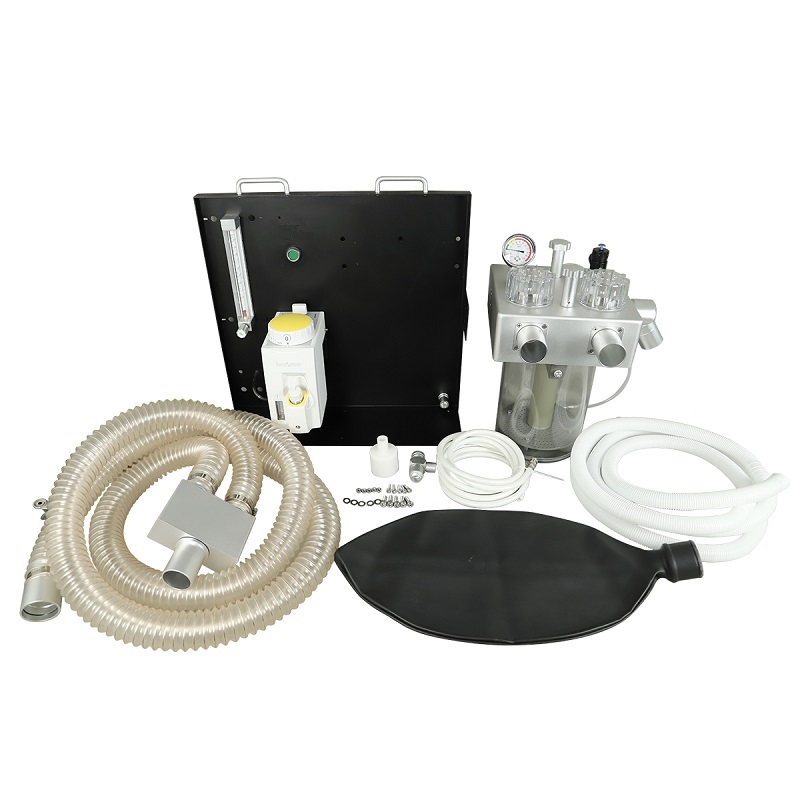

V-A100 Large Animal Anesthesia Machine
- SKU
- V-A100
- Brand
- MoreVET
- Manufactured by
- MoreVET
- Availability
- In stock
- ✓ Worldwide shipping
Clinical overview
Built for surgical precision
Features
-Specilized anesthesia machine for large animals up to 1200kg
-The powder-coated steel frame is balanced and topple-proof
-High-precision O2 flowmeter
-High-precision vaporizer with good performance of temperature and flow compensation
-Vaporizer with selectatec compatiable mounting bar, cage mounting is compatiable
-The inspiratory and expiratory valves are demo-type and visible
-Open breathing circuit connector is available to connect with Jackson breathing circuit
-30L Air bag used for large animals
-Two handles on the top, easy to carry
-Trolley is easily to transport everywhere (optional)
-Applied to large animals such horse, cow, tiger, lion, etc
Technical Specifications
|
PARAMETER |
SPECIFICATION |
|
Ventilation mode |
manual mode, spontaneous mode |
|
O2 gas source |
0.3~0.4 MPa (3-4 bar or 43.5psi-58psi) |
|
O2 flow meter |
0-10L/min |
|
O2 flush valve |
25L/min~75L/min |
|
Soda lime canister |
8L, easy to change other size |
|
Air bag |
30L |
|
APL(Pop-Off) valve |
0~60cmH2O |
|
Breathing pressure gauge |
-20cmH2O~100cmH2O (-1.96Kpa~9.6Kpa) |
|
Vaporizer |
Isoflurane (Sevoflurane, Enflurane or Halothane is optional) |
|
CO2 circle absorber
|
including soda lime canister, Pop-off valve, breathing pressure gauge, inspiratory valve and expiratory valve |
|
Max. animal weight |
1200kg |
|
Optional trolley |
470mm*510mm*1400mm (L*D*H) |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Ventilation mode
- manual mode, spontaneous mode
- O2 gas source
- 0.3~0.4 MPa (3-4 bar or 43.5psi-58psi)
- O2 flow meter
- 0-10L/min
- O2 flush valve
- 25L/min~75L/min
- Soda lime canister
- 8L, easy to change other size
- Air bag
- 30L
- APL(Pop-Off) valve
- 0~60cmH2O
- Breathing pressure gauge
- -20cmH2O~100cmH2O (-1.96Kpa~9.6Kpa)
- Vaporizer
- Isoflurane (Sevoflurane, Enflurane or Halothane is optional)
- CO2 circle absorber
- including soda lime canister, Pop-off valve, breathing pressure gauge, inspiratory valve and expiratory valve
- Max. animal weight
- 1200kg
- Optional trolley
- 470mm*510mm*1400mm (L*D*H)
