Multifunctional Drill and Saw
V-BM100 Multifunctional Drill and Saw
- SKU
- V-BM100
- Brand
- MoreVET
- Manufactured by
- MoreVET
- Availability
- In stock
- ✓ Worldwide shipping
Clinical overview
Built for surgical precision
V-BM100 multifunctional power system
With a comprehensive range of quick change attachments assembled in one full functional handpiece, afford surgeon a convenient option.
Technical data
|
SPECIFICATION |
PARAMETERS |
|
Bone drill speed |
0-1300r/m |
|
Cannulated drill speed |
0-600r/m |
|
Oscillating saw |
0-18000osc/m |
|
Acetabular bone drill |
0-500r/m |
|
Craniotomy drill |
0-900r/m |
|
Craniotomy mill |
0-40000r/m |
|
Sternum saw |
0-15000osc/m |
|
Saw non-load noise |
≤75dB |
|
Drill non-load noise |
≤65dB |
|
Diameter run-out |
≤0.5mm |
|
Oscillations |
0-15000r/min |
|
Bone drill speed |
0-1300r/m |
Main Technical Data
|
Item |
Content |
Specifications |
|
Hand Piece |
Working Voltage |
14.4V |
|
Output Power |
≥20W |
|
|
Unit rise in temperature |
≤25°C |
|
|
Charger |
Input Voltage |
AC 220V，50Hz |
|
Output Power |
14.4V，900mA |
|
|
Input Power |
30VA |
|
|
Battery |
Voltage |
14.4V |
|
Charging time |
About 3 hours |
Application and Feature
Electric surgical drill & saw is one of power tools widely used in orthopedic operation. 6Mpa high pressure. Some of bacteria can be killed by high temperature and pressure, fumigating cannot do.
Meanwhile, it can shorten sterilization time. Under high temperature and high pressure, just need 20 minutes, win the valuable time for the patient. The device is optional, good looking, small size, light weight, no wires, easy to carry, safe operation.

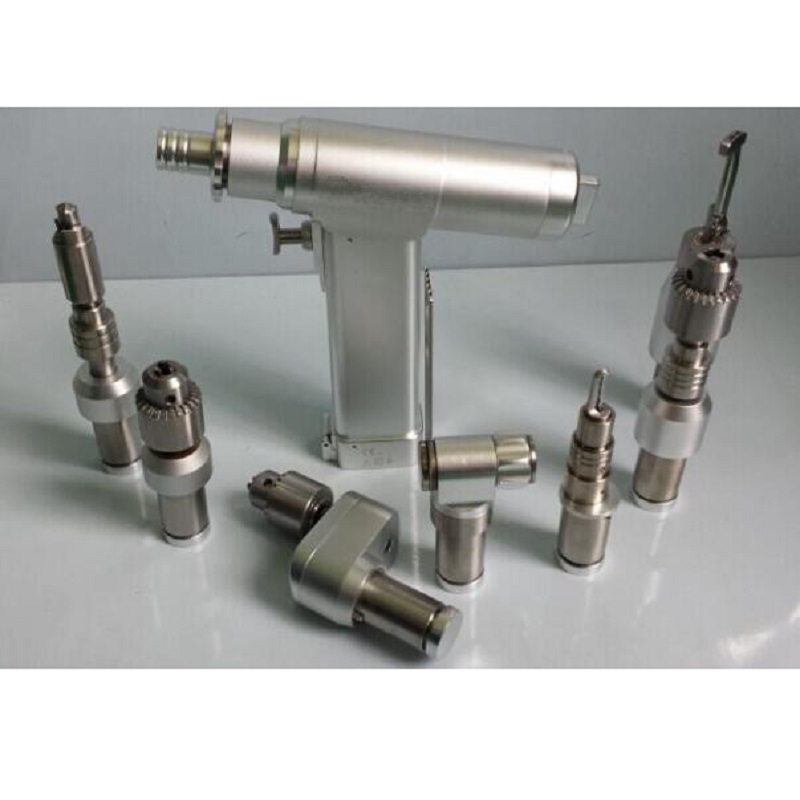

Composition
Battery operated surgical drill&saw is made of main hand piece, charger, battery. The whole outer skin of the hand piece is sealed. Charger is not a medical electric device.

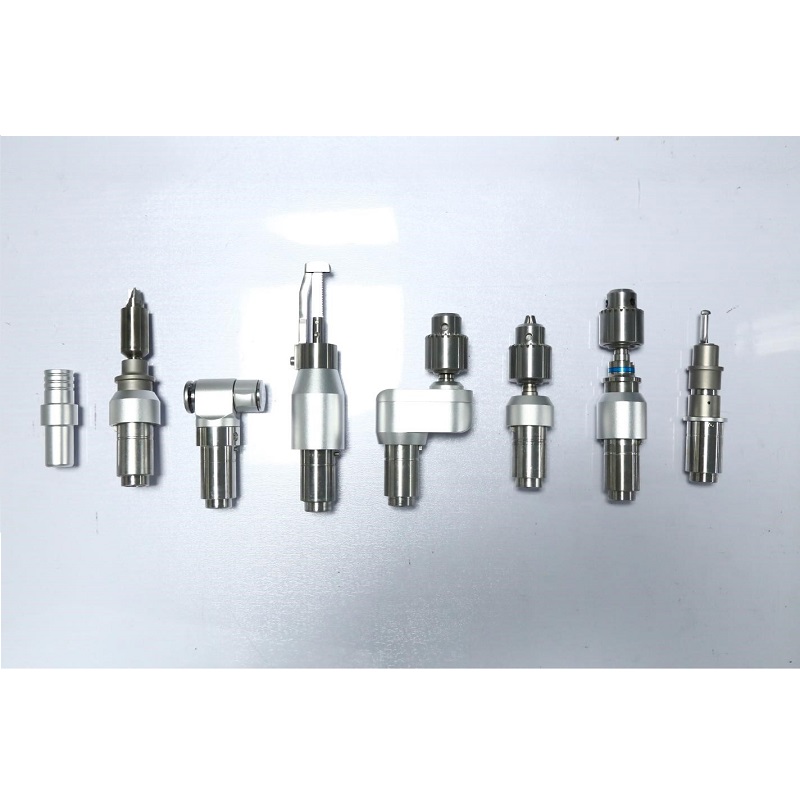

Standard configuration
One hand piece
One cranial drill adapter
One cranial mill adapter
One bone drill adapter
One oscillating saw adapter
One canulate drill adapter
One TPLO Trepan saw adapter
One reamer drill adapter
One charger
Two 14.4V batteries
Two aspetic battery transfer rings
Two sternum saw blades
Two oscillating saw blades
Three drill chuck keys
Two cranial mill blades
One Aluminum case
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Bone drill speed
- 0-1300r/m
- Cannulated drill speed
- 0-600r/m
- Oscillating saw
- 0-18000osc/m
- Acetabular bone drill
- 0-500r/m
- Craniotomy drill
- 0-900r/m
- Craniotomy mill
- 0-40000r/m
- Sternum saw
- 0-15000osc/m
- Saw non-load noise
- ≤75dB
- Drill non-load noise
- ≤65dB
- Diameter run-out
- ≤0.5mm
- Oscillations
- 0-15000r/min
- Bone drill speed
- 0-1300r/m
- Item
- Content Specifications
- Hand Piece
- Working Voltage 14.4V
- Output Power
- ≥20W
- Unit rise in temperature
- ≤25°C
- Charger
- Input Voltage AC 220V，50Hz
- Output Power
- 14.4V，900mA
- Input Power
- 30VA
- Battery
- Voltage 14.4V
- Charging time
- About 3 hours
Documents & downloads
Regulatory paperwork & manuals
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
