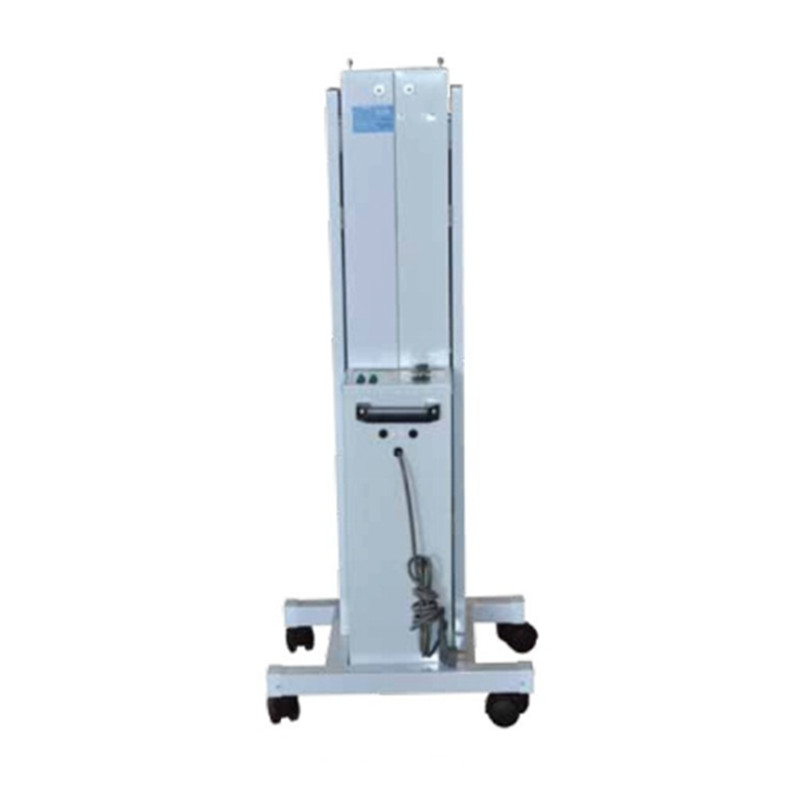

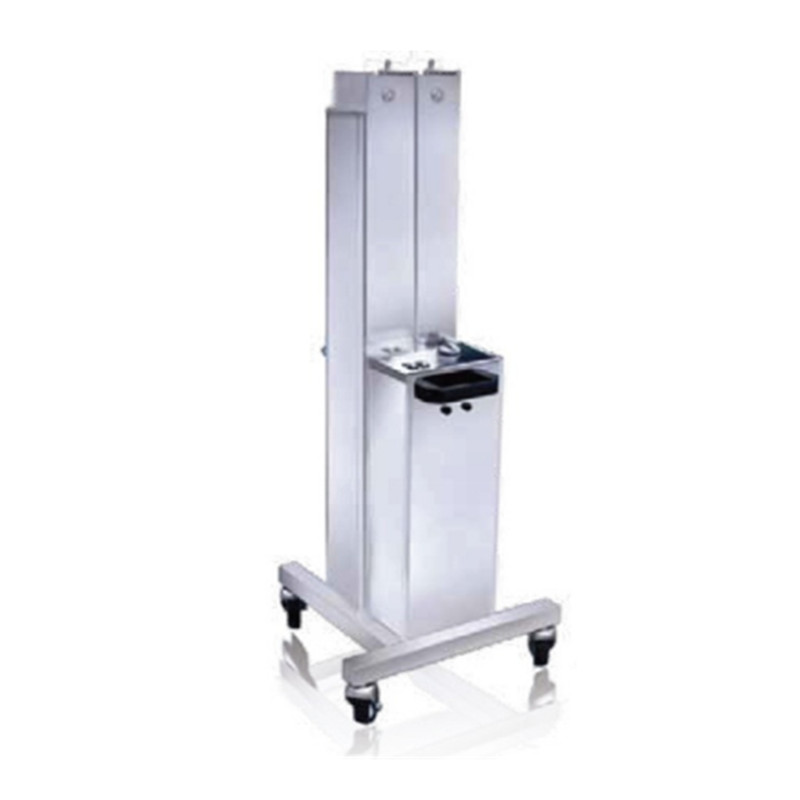

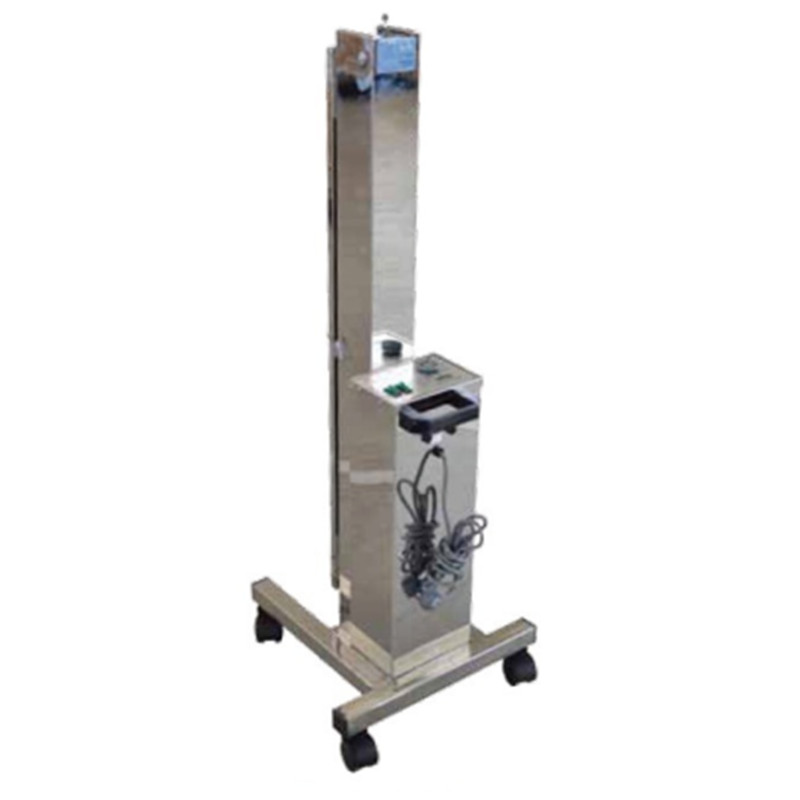

Ultraviolet Ray Sterilization Trolley
V-ZXC-Ultraviolet Ray Sterilization Trolley
- SKU
- V-ZXC
- Brand
- MoreVET
- Manufactured by
- MoreVET
- Availability
- In stock
- ✓ Worldwide shipping
Clinical overview
Built for surgical precision
Purpose
Especially applied to air sterilization to all sorts of sanitary medical units or departments, scientific research units, pharmaceutical and food-process industry etc.
Features
Either single-lamp or double-lamp structure is adopted. Arm angle can be adjusted. In order to protect pipes from dust and damage, please leave protection door shut while it doesn’t work.
Timer can be set 60 minutes for sterilization. Once it is finished, buzzer rings, circuit breaks down and pipe extinguished.
Do circuit test to make sure there is no leakage prior to application

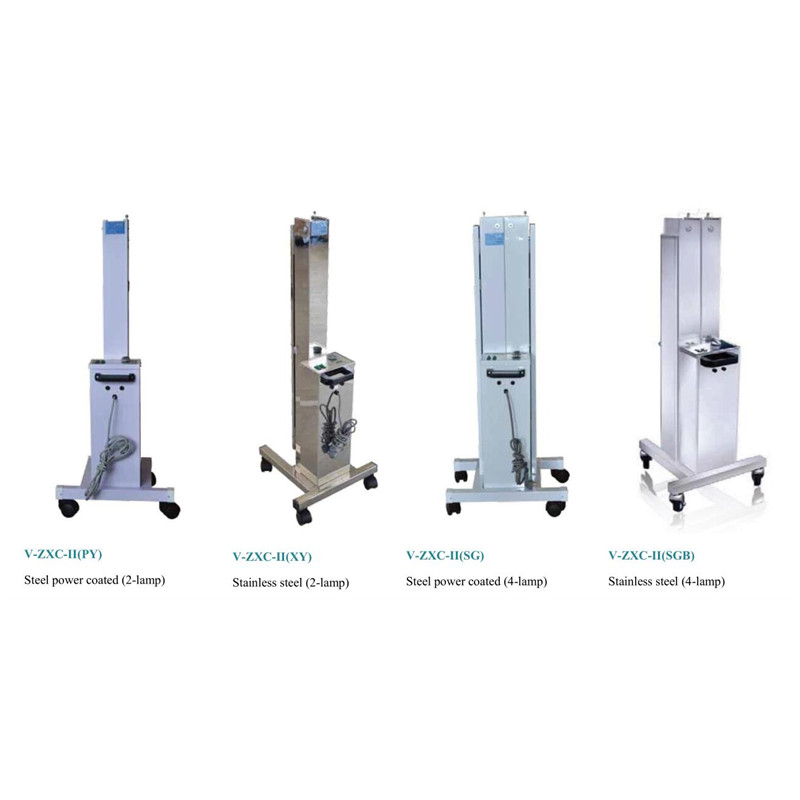

Configure
V-ZXC-II(PY) Steel power coated (2-lamp)
V-ZXC-II(XY) Stainless steel (2-lamp)
V-ZXC-II(SG) Steel power coated (4-lamp)
V-ZXC-II(SGB) Stainless steel (4-lamp)
Main Technical Specifications
|
PARAMETER |
SPECIFICATION |
|
Wavelength |
253.7mm |
|
Power Source |
AC220V (50HZ) |
|
Lamp arm adjust angle |
0-135° (II type) |
|
Timing range |
0~60 mins (II/SG/SGB Type) |
|
Illumination |
≧ 90μw/cm² |
|
Light |
PY/XY Type Quartz light tube 30W x2s SG/SGB Type Quartz light tube 30W x4s |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Wavelength
- 253.7mm
- Power Source
- AC220V (50HZ)
- Lamp arm adjust angle
- 0-135° (II type)
- Timing range
- 0~60 mins (II/SG/SGB Type)
- Illumination
- ≧ 90μw/cm²
- Light
- PY/XY Type Quartz light tube 30W x2s SG/SGB Type Quartz light tube 30W x4s
