Medical Pharmacy Refrigerator (2～8°C)

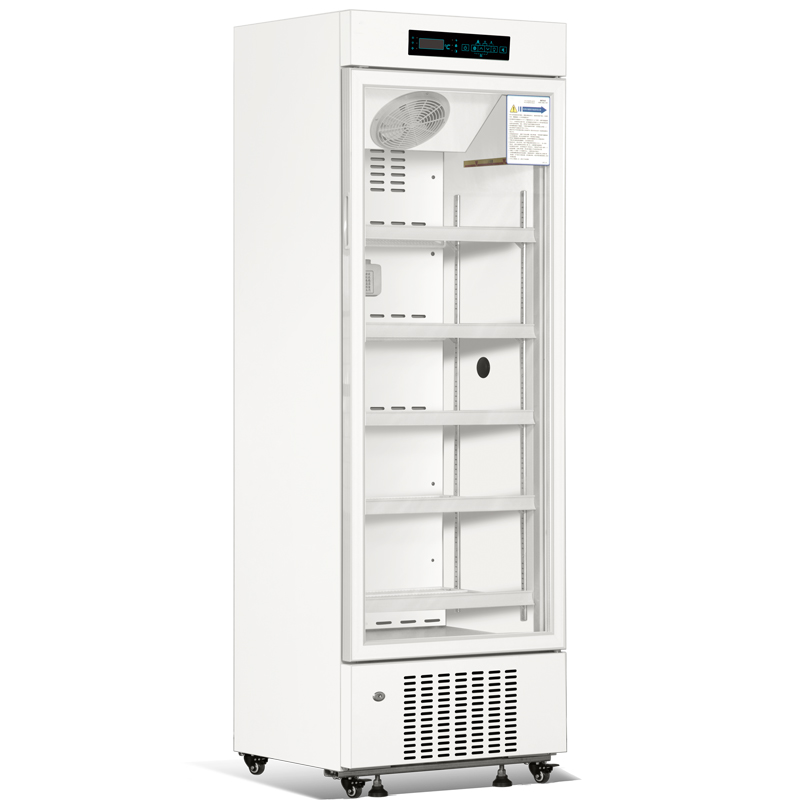

VC-V316 Medical Pharmacy Refrigerator (2～8°C)
- SKU
- VC-V316
- Brand
- MoreVET
- Manufactured by
- MoreVET
- Availability
- In stock
- ✓ Worldwide shipping
Clinical overview
Built for surgical precision
Product Description
VC-V316 2~8 °C Pharmacy Refrigerator (316 Liter) is widely used in hospitals pharmacy stores and laboratories. This is for placing and preserving storage such as drugs, vaccines, enzymes,hormones, steam cells, extracted RNA and gene libraries and important biological and chemical reagents.
Technical Specifications
|
Performance |
|
|
Cooling method |
Forced Air Cooling |
|
Defrost |
Auto |
|
Shelf/drawer |
Shelves/5 |
|
Temperature range |
2℃~8℃ |
|
Ambient temperature |
10~32℃ |
|
Noise (db) |
50 |
|
Refrigeration System |
|
|
Refrigerant |
R290 |
|
Temp.controller |
Microprocessor |
|
Sensor |
NTC |
|
Display |
Digital |
|
Internal material |
SPCC sprayed steel |
|
External material |
SPCC sprayed steel |
|
Compressor |
1 |
|
Alarms |
|
|
High/low temperature |
Y |
|
Power failure |
Y |
|
Thermostat failure |
Y |
|
Door ajar |
Y |
|
Power failure backup |
8 hours |
|
Electrical Data |
|
|
Voltage Frequency (v/Hz) |
220V 50Hz/60Hz |
|
Power(W) |
286W |
|
Current (A) |
1.62A |
|
Power consumption |
3.63kWh/24h |
|
Dimensions |
|
|
Capacity (L/cu.ft) |
316/11.15 |
|
Exterior size (W*D*H)(mm) |
640*555*1925 |
|
Interior size (W*D*H)(mm) |
540*425*1380 |
|
Package size (W*D*H)(mm) |
704*637*2000 |
|
CBM |
0.9 |
|
NT./GT.(kg) |
92.5/100 |
|
Other |
|
|
Outer door/type |
Heated Glass Door |
|
Lighting |
LED |
|
Door Lock |
1 Lock with 2 keys |
|
Access port QTY/Dia. |
1/25mm |
|
Remote alarm port |
Y |
|
Temperature recorder |
Optional Data logger |
|
USB Port |
Optional |
|
RS232/485 port |
Optional |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Cooling method
- Forced Air Cooling
- Defrost
- Auto
- Shelf/drawer
- Shelves/5
- Temperature range
- 2℃~8℃
- Ambient temperature
- 10~32℃
- Noise (db)
- 50
- Refrigerant
- R290
- Temp.controller
- Microprocessor
- Sensor
- NTC
- Display
- Digital
- Internal material
- SPCC sprayed steel
- External material
- SPCC sprayed steel
- Compressor
- 1
- High/low temperature
- Y
- Power failure
- Y
- Thermostat failure
- Y
- Door ajar
- Y
- Power failure backup
- 8 hours
- Voltage Frequency (v/Hz)
- 220V 50Hz/60Hz
- Power(W)
- 286W
- Current (A)
- 1.62A
- Power consumption
- 3.63kWh/24h
- Capacity (L/cu.ft)
- 316/11.15
- Exterior size (W*D*H)(mm)
- 640*555*1925
- Interior size (W*D*H)(mm)
- 540*425*1380
- Package size (W*D*H)(mm)
- 704*637*2000
- CBM
- 0.9
- NT./GT.(kg)
- 92.5/100
- Outer door/type
- Heated Glass Door
- Lighting
- LED
- Door Lock
- 1 Lock with 2 keys
- Access port QTY/Dia.
- 1/25mm
- Remote alarm port
- Y
- Temperature recorder
- Optional Data logger
- USB Port
- Optional
- RS232/485 port
- Optional
