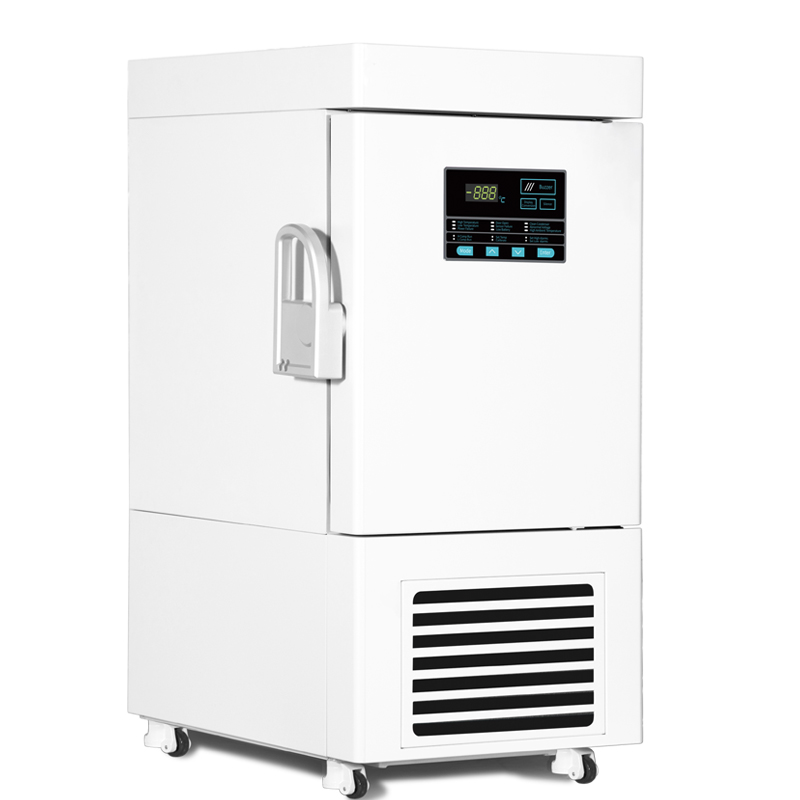

Ultra-low Medical Freezer (-40 ~ -86°C) VDF-86V58
VDF-86V58 Ultra-low Medical Freezer (-40 ~ -86°C)
- SKU
- VDF-86V58
- Brand
- MoreVET
- Manufactured by
- MoreVET
- Availability
- In stock
- ✓ Worldwide shipping
Clinical overview
Product overview
Features
-86°C ULT freezer is specially designed and manufactured for long term storage of various biological products, including viruses, germs, erythrocytes, leucocyte and cutis. Applications can be found in blood banks, hospitals, epidemic prevention service, and research institutes, laboratories in electronic and chemical plants and biological engineering institutes.
Technical Specifications
|
Performance |
|
|
Shelf/drawer |
Stainless steel shelf/1 |
|
Cooling method |
Direct cooling |
|
Defrost |
Manual |
|
Ambient temperature |
10~32℃ |
|
Temperature range |
-40~-86℃ |
|
Noise (db) |
50 |
|
Inside material |
Stainless steel |
|
Outside material |
Color sprayed steel |
|
Insulation |
PURF |
|
Refrigeration System |
|
|
Refrigerant |
R4001 |
|
Temp.controller |
Microprocessor |
|
Sensor |
PTC 100 |
|
Display |
Digital |
|
Compressor |
SECOP/1 |
|
Frozen Racks |
2 (6×2) |
|
Boxes (2 inches) |
24 |
|
Samples (2ml) |
2400 |
|
Alarms |
|
|
High/low temperature |
Y |
|
Power failure |
Y |
|
Abnormal voltage |
Y |
|
Sensor error |
Y |
|
Filter screen check |
Y |
|
Thermostat failure |
Y |
|
Low battery |
Y |
|
Condenser clean |
Y |
|
High ambient temperature |
Y |
|
Door ajar |
Y |
|
Power failure backup system (alarm) |
72h |
|
Dimensions |
|
|
Capacity (L/cu.ft) |
58L/2 |
|
Exterior size (W*D*H)(mm) |
635*757*1212 |
|
Interior size (W*D*H)(mm) |
330*453*410 |
|
Package size (W*D*H)(mm) |
730*845*1400 |
|
CBM |
0.87 |
|
NT./GT.(kg) |
115/155 |
|
Electrical Data |
|
|
Voltage Frequency (v/Hz) |
220/50Hz |
|
Power(W) |
442W |
|
Current (A) |
3.18A |
|
Power consumption (kWh/24h) |
6.09 |
|
Accessories |
|
|
Inside door |
1 |
|
Test hole QTY/Dia. |
1/25MM |
|
USB port |
Y |
|
Data logger |
Optional |
|
Remote alarm port |
Y |
|
Optional |
|
|
CO2 back up system |
Optional |
|
LN2 back up system |
Optional |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Shelf/drawer
- Stainless steel shelf/1
- Cooling method
- Direct cooling
- Defrost
- Manual
- Ambient temperature
- 10~32℃
- Temperature range
- -40 ~ -86 ℃
- Noise (db)
- 50
- Inside material
- Stainless steel
- Outside material
- Color sprayed steel
- Insulation
- PURF
- Refrigerant
- R4001
- Temp.controller
- Microprocessor
- Sensor
- PTC 100
- Display
- Digital
- Compressor
- SECOP/1
- Frozen Racks
- 2 (6×2)
- Boxes (2 inches)
- 24
- Samples (2ml)
- 2400
- High/low temperature
- Y
- Power failure
- Y
- Abnormal voltage
- Y
- Sensor error
- Y
- Filter screen check
- Y
- Thermostat failure
- Y
- Low battery
- Y
- Condenser clean
- Y
- High ambient temperature
- Y
- Door ajar
- Y
- Power failure backup system (alarm)
- 72h
- Capacity (L/cu.ft)
- 58L/2
- Exterior size (W*D*H)(mm)
- 635*757*1212
- Interior size (W*D*H)(mm)
- 330*453*410
- Package size (W*D*H)(mm)
- 730*845*1400
- CBM
- 0.87
- NT./GT.(kg)
- 115/155
- Voltage Frequency (v/Hz)
- 220/50Hz
- Power(W)
- 442W
- Current (A)
- 3.18A
- Power consumption (kWh/24h)
- 6.09
- Inside door
- 1
- Test hole QTY/Dia.
- 1/25MM
- USB port
- Y
- Data logger
- Optional
- Remote alarm port
- Y
- CO2 back up system
- Optional
- LN2 back up system
- Optional
Documents & downloads
Regulatory paperwork & manuals
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
