Vet Slit Lamp

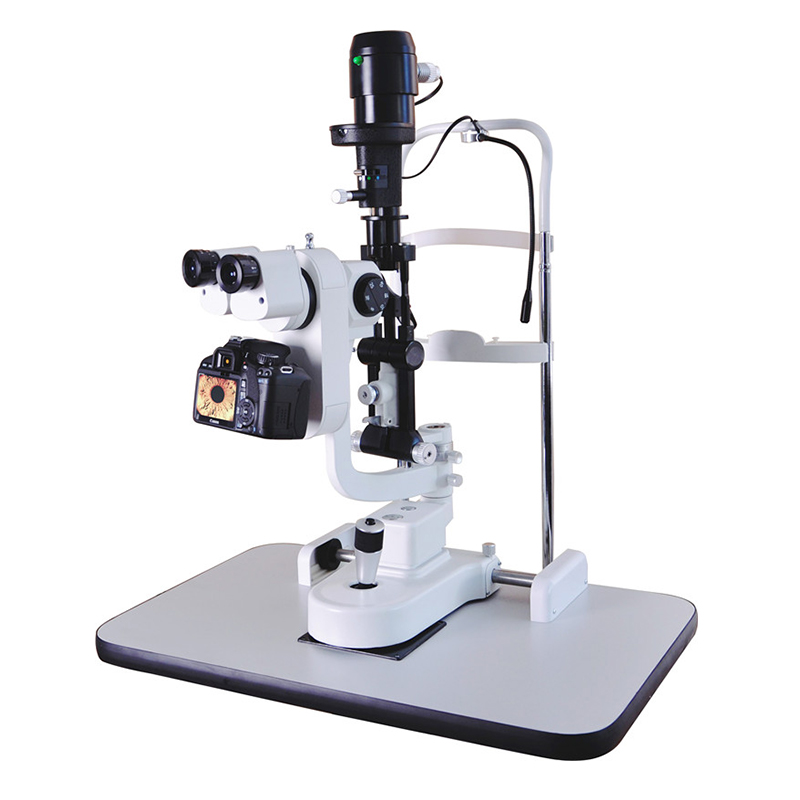

VME-5DI Vet Slit Lamp
- SKU
- VME-5DI
- Brand
- MoreVET
- Manufactured by
- MoreVET
- Availability
- In stock
- ✓ Worldwide shipping
Clinical overview
Built for surgical precision
Description
Galilean unparalleled Optical give this slit lamp high depth of field view.
Drum rotation makes 5 steps magnification convenient to shift
The bulb and optical lens made of glass are imported from Germany.
All the lens are multi-coated, mildewproof and anti-reflection.
All the adaptors are universal.
Technical Specifications
|
PARAMETER |
SPECIFICATION |
|
Microscope Type |
Parallel Stereoscope |
|
Magnification |
Five steps magnifications |
|
Eye piece |
12.5x |
|
Total Magnification and Diameter of Visual Field(mm) |
6x, 10x, 16x, 25x, 40x |
|
Adjustable Range of Pupil Distance(mm) |
55~75 |
|
Adjustable Diopter |
-5D~+5D |
|
Slit Width(mm) |
0-9 adjustable or 0-14 adjustable |
|
Slit Height(mm) |
1~9 adjustable or 1-14 adjustable |
|
Slit Angle |
0~180° |
|
Slit Inclination |
5°, 10°, 15°, 20° |
|
Light Spot Diameter (mm) |
Φ9, Φ8, Φ5, Φ3, Φ2, Φ0.2 Or Φ14, Φ8, Φ5, Φ3, Φ2, Φ0.2 |
|
Filters |
Heat Absorption, Grey, Red Free, Cobalt Blue |
|
Illumination Bulb |
12V / 30W or 12V/50W halogen bulb |
|
Voltage/frequency |
AC220V,50Hz or AC110V, 60Hz |
|
Power |
60VA |
|
Electrical Safety Standard |
Conform to Standard IEC 601-1.Class1Type B |
|
Whole Packing Volume |
0.30m3 |
|
Carton Number |
2 |
|
Total Weight |
46kg |
|
Standard: 5D Slit lmp, beam splitter & Adapter, Camera |
|
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Microscope Type
- Parallel Stereoscope
- Magnification
- Five steps magnifications
- Eye piece
- 12.5x
- Total Magnification and Diameter of Visual Field(mm)
- 6x, 10x, 16x, 25x, 40x
- Adjustable Range of Pupil Distance(mm)
- 55~75
- Adjustable Diopter
- -5D~+5D
- Slit Width(mm)
- 0-9 adjustable or 0-14 adjustable
- Slit Height(mm)
- 1~9 adjustable or 1-14 adjustable
- Slit Angle
- 0~180°
- Slit Inclination
- 5°, 10°, 15°, 20°
- Light Spot Diameter (mm)
- Φ9, Φ8, Φ5, Φ3, Φ2, Φ0.2 Or Φ14, Φ8, Φ5, Φ3, Φ2, Φ0.2
- Filters
- Heat Absorption, Grey, Red Free, Cobalt Blue
- Illumination Bulb
- 12V / 30W or 12V/50W halogen bulb
- Voltage/frequency
- AC220V,50Hz or AC110V, 60Hz
- Power
- 60VA
- Electrical Safety Standard
- Conform to Standard IEC 601-1.Class1Type B
- Whole Packing Volume
- 0.30m 3
- Carton Number
- 2
- Total Weight
- 46kg
