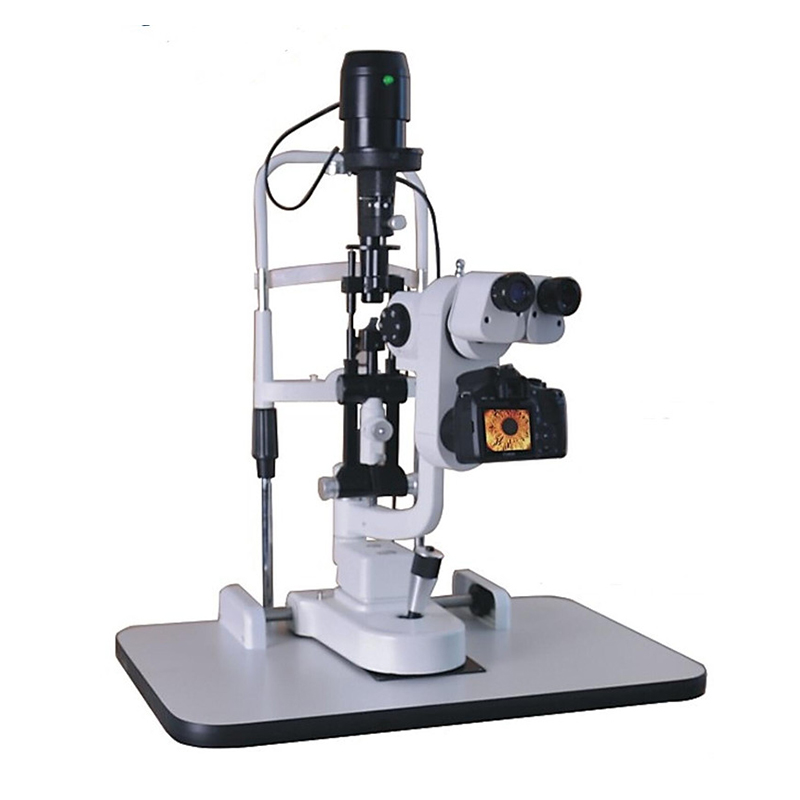

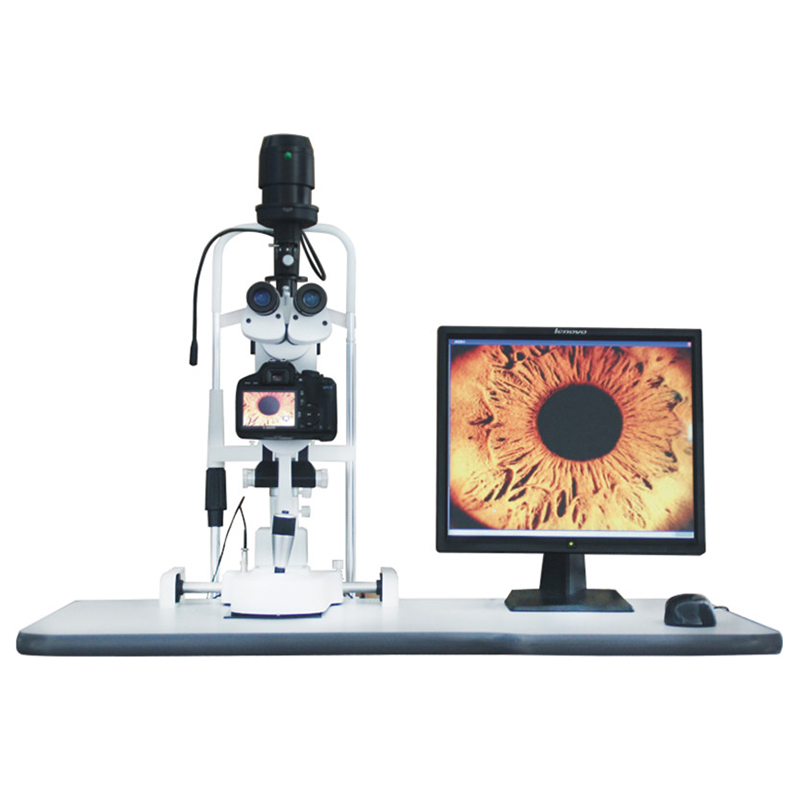

Ophthalmic Slit Lamp VME-5DII
VME-5DII Vet Slit Lamp
- Brand
- MoreVET
- Manufactured by
- MoreVET
- Availability
- In stock
- ✓ Worldwide shipping
Clinical overview
Product overview
Description
Galilean unparalleled Optical give this slit lamp high depth of field view.
Drum rotation makes 5 steps magnification convenient to shift
The bulb and optical lens made of glass are imported from Germany.
All the lens are multi-coated, mildewproof and anti-reflection.
All the adaptors are universal.
Technical Specifications
|
PARAMETER |
SPECIFICATION |
|
Microscope Type |
Parallel Stereoscope |
|
Magnification |
Five steps magnifications |
|
Eye piece |
12.5x |
|
Total Magnification and Diameter of Visual Field(mm) |
6x, 10x, 16x, 25x, 40x |
|
Adjustable Range of Pupil Distance(mm) |
55~75 |
|
Adjustable Diopter |
-5D~+5D |
|
Slit Width(mm) |
0-9 adjustable or 0-14 adjustable |
|
Slit Height(mm) |
1~9 adjustable or 1-14 adjustable |
|
Slit Angle |
0~180° |
|
Slit Inclination |
5°, 10°, 15°, 20° |
|
Light Spot Diameter (mm) |
Φ9, Φ8, Φ5, Φ3, Φ2, Φ0.2 Or Φ14, Φ8, Φ5, Φ3, Φ2, Φ0.2 |
|
Filters |
Heat Absorption, Grey, Red Free, Cobalt Blue |
|
Illumination Bulb |
12V / 30W or 12V/50W halogen bulb |
|
Voltage/frequency |
AC220V,50Hz or AC110V, 60Hz |
|
Power |
60VA |
|
Electrical Safety Standard |
Conform to Standard IEC 601-1.Class1Type B |
|
Whole Packing Volume |
0.30m3 |
|
Carton Number |
2 |
|
Total Weight |
46kg |
|
Standard: 5D Slit lmp, beam splitter & Adapter, Camera, Computer, Software |
|
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Microscope Type
- Parallel Stereoscope
- Magnification
- Five steps magnifications
- Eye piece
- 12.5x
- Total Magnification and Diameter of Visual Field(mm)
- 6x, 10x, 16x, 25x, 40x
- Adjustable Range of Pupil Distance(mm)
- 55~75
- Adjustable Diopter
- -5D~+5D
- Slit Width(mm)
- 0-9 adjustable or 0-14 adjustable
- Slit Height(mm)
- 1~9 adjustable or 1-14 adjustable
- Slit Angle
- 0~180°
- Slit Inclination
- 5°, 10°, 15°, 20°
- Light Spot Diameter (mm)
- Φ9, Φ8, Φ5, Φ3, Φ2, Φ0.2 Or Φ14, Φ8, Φ5, Φ3, Φ2, Φ0.2
- Filters
- Heat Absorption, Grey, Red Free, Cobalt Blue
- Illumination Bulb
- 12V / 30W or 12V/50W halogen bulb
- Voltage/frequency
- AC220V,50Hz or AC110V, 60Hz
- Power
- 60VA
- Electrical Safety Standard
- Conform to Standard IEC 601-1.Class1Type B
- Whole Packing Volume
- 0.30m3
- Carton Number
- 2
- Total Weight
- 46kg
Documents & downloads
Regulatory paperwork & manuals
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
