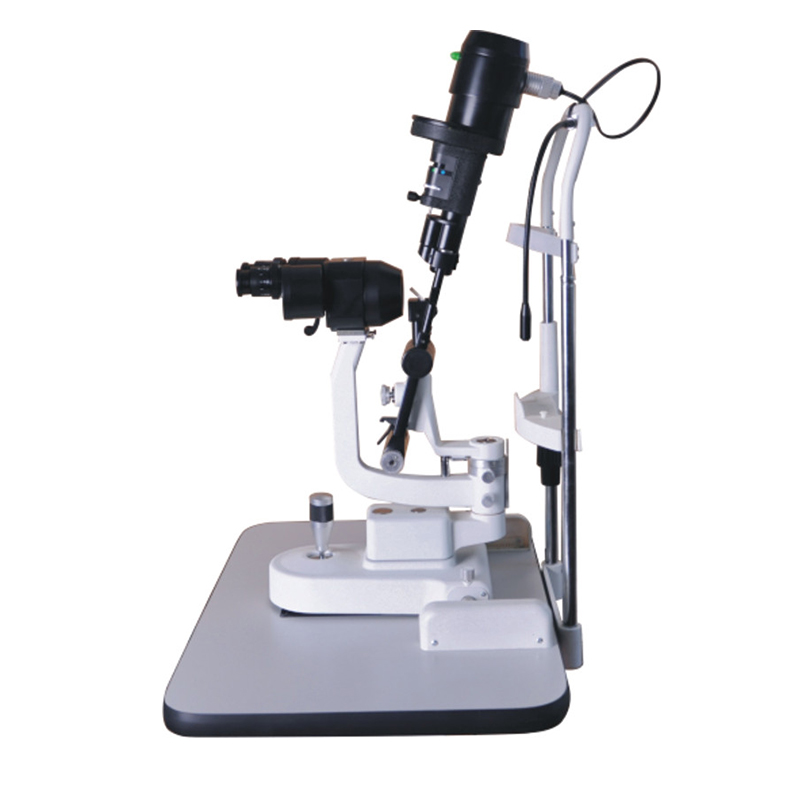

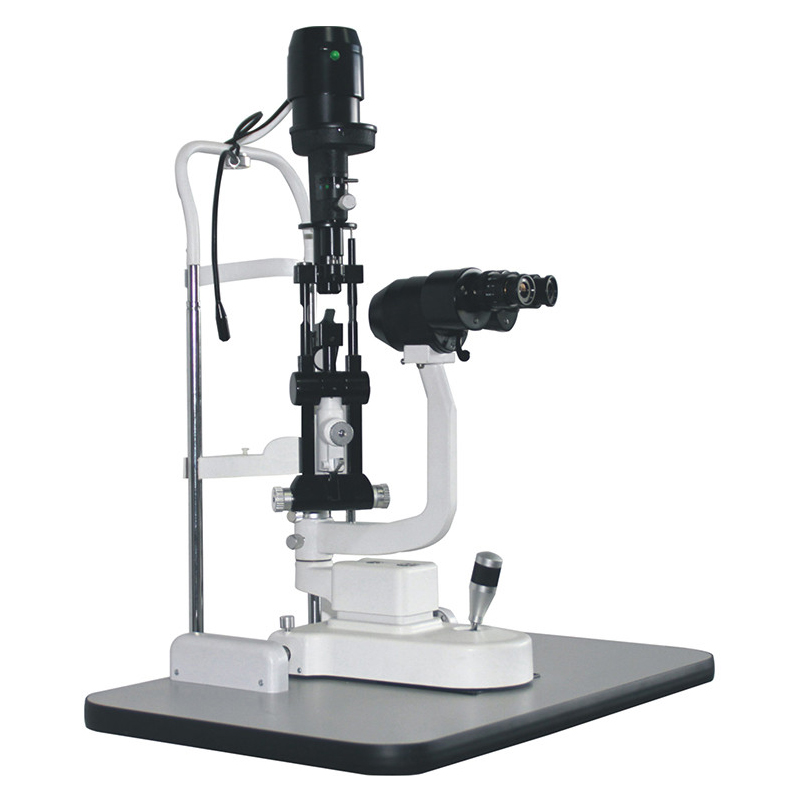

Ophthalmic Slit Lamp VME-5E
VME-5E Vet Slit Lamp
- SKU
- VME-5E
- Brand
- MoreVET
- Manufactured by
- MoreVET
- Availability
- In stock
- ✓ Worldwide shipping
Clinical overview
Product overview
Description
Universal Slit lamp with 3 steps magnification;
Converging Optical Path;
The optical lenses are made of glass imported from Germany: multi-coated, mildewproof and anti-reflection, given a superior clarity image of observers;
The adaptor for Applanation Tonometer are universal.
Technical Specifications
|
PARAMETER |
SPECIFICATION |
|
Microscope Type |
Converging Stereoscope |
|
Magnification |
Three-step magnifications |
|
Eye piece |
10x |
|
Magnification |
10x , 16x , 25x |
|
Adjustable Range of PD (mm) |
55~75 |
|
Adjustable Diopter |
-8D~+8D |
|
Slit Width(mm) |
0-9 adjustable |
|
Slit Height(mm) |
1-9 adjustable |
|
Slit Angle |
0-180° |
|
Slit Inclination |
5°, 10°, 15°, 20°，4 steps for choose |
|
Aperture Diameter (mm) |
Φ9, Φ8, Φ5, Φ3, Φ2, Φ0.2 |
|
Filters |
Heat Absorption, Grey, Red Free, Cobalt Blue |
|
Illumination Bulb |
12V / 30W or 12V/50W halogen bulb |
|
Fixed Lamp |
Red LED |
|
Voltage/frequency |
AC220V, 50Hz or AC110V, 60Hz |
|
Power |
60VA |
|
Optional: Applanation Tonometer, Elevating table |
|
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Microscope Type
- Converging Stereoscope
- Magnification
- Three-step magnifications
- Eye piece
- 10x
- Magnification
- 10x , 16x , 25x
- Adjustable Range of PD (mm)
- 55~75
- Adjustable Diopter
- -8D~+8D
- Slit Width(mm)
- 0-9 adjustable
- Slit Height(mm)
- 1-9 adjustable
- Slit Angle
- 0-180°
- Slit Inclination
- 5°, 10°, 15°, 20°，4 steps for choose
- Aperture Diameter (mm)
- Φ9, Φ8, Φ5, Φ3, Φ2, Φ0.2
- Filters
- Heat Absorption, Grey, Red Free, Cobalt Blue
- Illumination Bulb
- 12V / 30W or 12V/50W halogen bulb
- Fixed Lamp
- Red LED
- Voltage/frequency
- AC220V, 50Hz or AC110V, 60Hz
- Power
- 60VA
Documents & downloads
Regulatory paperwork & manuals
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
