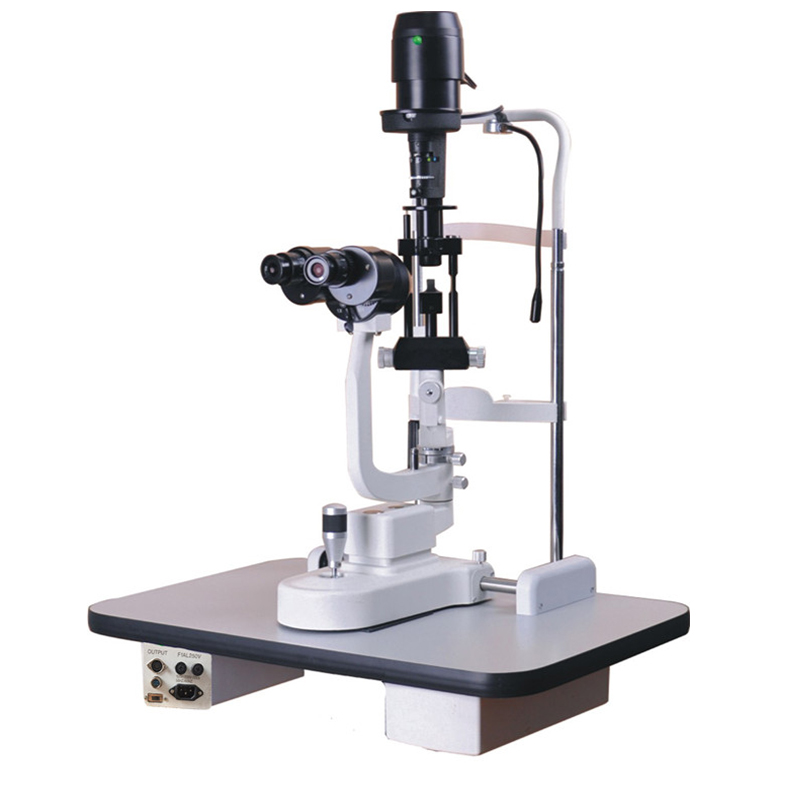

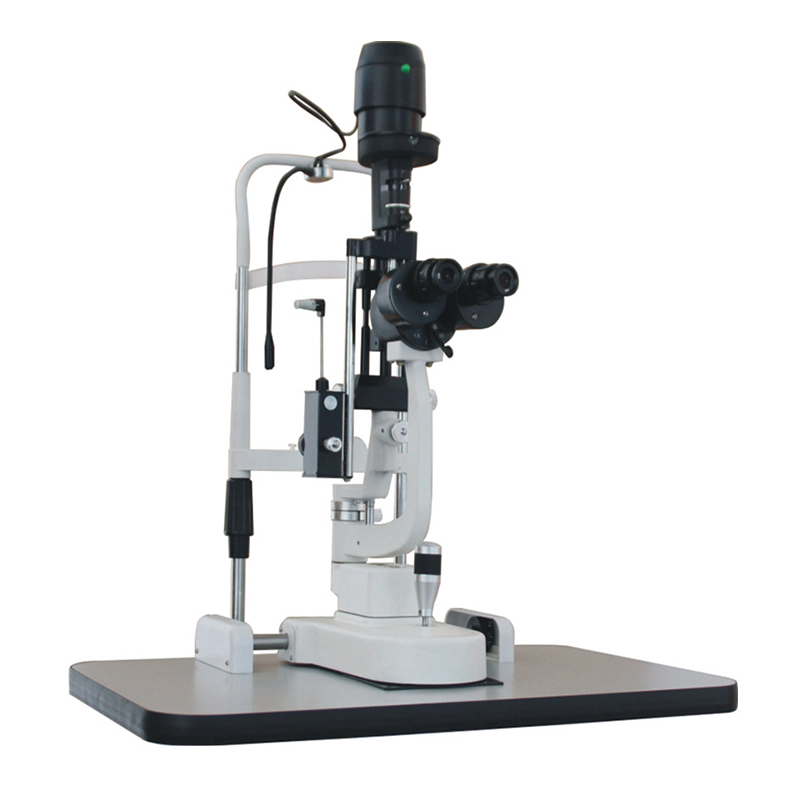

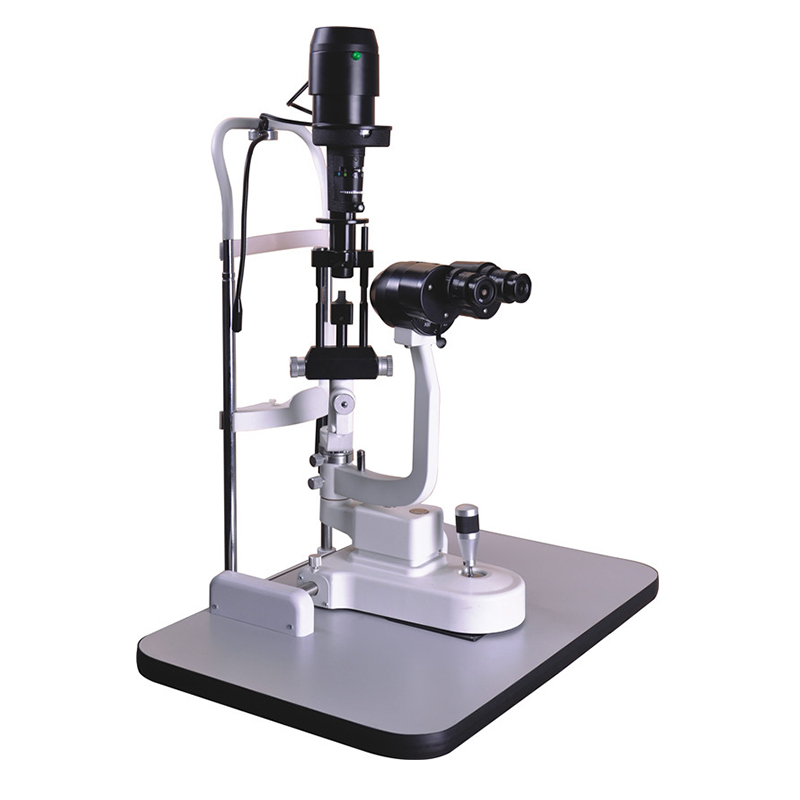

Ophthalmic Slit Lamp VME-5P
VME-5P Vet Slit Lamp
- SKU
- VME-5P
- Brand
- MoreVET
- Manufactured by
- MoreVET
- Availability
- In stock
- ✓ Worldwide shipping
Clinical overview
Product overview
Description
2 steps magnification,10x, 16x for choice;
Converging Optical Path;
The optical lenses are made of glass imported from Germany: multi-coated, mildewproof and anti-reflection, given a superior clarity image of observers.
Technical Specifications
|
PARAMETER |
SPECIFICATION |
|
Microscope Type |
Converging Stereoscope |
|
Magnification |
2 steps magnifications |
|
Magnification |
10x , 16x |
|
Adjustable Range of PD (mm) |
55~75 |
|
Adjustable Diopter |
±5D |
|
Slit Width(mm) |
0-9 adjustable |
|
Slit Height(mm) |
1-9 adjustable |
|
Slit Angle |
0-180° |
|
Light Spot Diameter (mm) |
Φ9、Φ8、Φ5、Φ3、Φ2、Φ1、Φ0.2 |
|
Filters |
Heat Absorption, Grey, Red Free, Cobalt Blue |
|
Illumination Bulb |
12V / 30W or 12V/50W halogen bulb |
|
Voltage/frequency |
AC220V/50 Hz; AC110V/60Hz |
|
Power |
60VA |
|
Whole Packing Volume |
0.26m3 |
|
Optional: Applanation Tonometer, Elevating table |
|
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Microscope Type
- Converging Stereoscope
- Magnification
- 2 steps magnifications
- Magnification
- 10x , 16x
- Adjustable Range of PD (mm)
- 55~75
- Adjustable Diopter
- ±5D
- Slit Width(mm)
- 0-9 adjustable
- Slit Height(mm)
- 1-9 adjustable
- Slit Angle
- 0-180°
- Light Spot Diameter (mm)
- Φ9、Φ8、Φ5、Φ3、Φ2、Φ1、Φ0.2
- Filters
- Heat Absorption, Grey, Red Free, Cobalt Blue
- Illumination Bulb
- 12V / 30W or 12V/50W halogen bulb
- Voltage/frequency
- AC220V/50 Hz; AC110V/60Hz
- Power
- 60VA
- Whole Packing Volume
- 0.26m 3
