Veterinary Blood Gas Analyzer

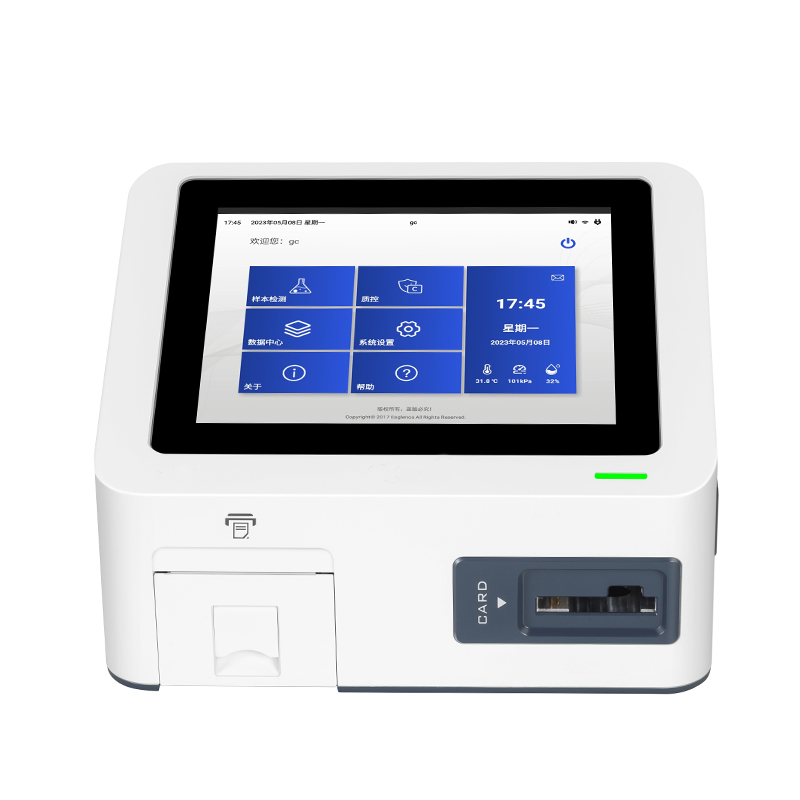

V-i30 Veterinary Blood Gas Analyzer
- SKU
- V-i30
- Brand
- MoreVET
- Manufactured by
- MoreVET
- Availability
- In stock
- ✓ Worldwide shipping
Clinical overview
Built for surgical precision
Features
Including 34 parameters in one test
34 parameters of blood gases,electrolytes and metabolites
10 measured parameters:K+,Na+,Cl-,iCa2+,PH ,pCO2,pO2,Glu ,Lac ,Hct
24 calculated parameters:cH+(T),pH(T),pCO2(T),pO2(T),pO2(A-a)(T), pO2(a/A)(T) ,
RI(T),pO2(T)/FiO2,cH+,iCa2+(7.4),HCO3-act,HCO3-std,BE(ecf),BE(B),BB(B),AG,sO2(est),tHb(est),TCO2,pO2(A-a),pO2(a/A),RI,mOsm,pO2/FiO2
Parameters
|
Parameter |
Range |
Unit |
|
K+ |
2.0-9.0 |
mmol/L |
|
Na+ |
100-180 |
mmol/L |
|
Cl – |
65-140 |
mmol/L |
|
iCa2+ |
0.25-2.50 |
mmol/L |
|
pH |
6.50-8.00 |
– |
|
pCO2 |
10.0-150.0 |
mmol/L |
|
pO2 |
10-700 |
mmol/L |
|
Glu |
1.1-38.0 |
mmol/L |
|
Lac |
0.50-20.00 |
mmol/L |
|
Hct |
10%-70% |
– |
Specifications
|
Parameter |
Specifications |
|
Sample |
whole blood |
|
Technology |
electrochemical biosensor technology |
|
Sample volume |
150µLO |
|
Size |
235mm x210mm x160 mm |
|
Weight |
3±0.5kg |
|
Test time |
5 min |
|
Memory |
99999 results |
|
Operating condition |
18°C~30°CO |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Parameter
- Range Unit
- K+
- 2.0-9.0 mmol/L
- Na+
- 100-180 mmol/L
- Cl –
- 65-140 mmol/L
- iCa2+
- 0.25-2.50 mmol/L
- pH
- 6.50-8.00 –
- pCO2
- 10.0-150.0 mmol/L
- pO2
- 10-700 mmol/L
- Glu
- 1.1-38.0 mmol/L
- Lac
- 0.50-20.00 mmol/L
- Hct
- 10%-70% –
- Parameter
- Specifications
- Sample
- whole blood
- Technology
- electrochemical biosensor technology
- Sample volume
- 150µLO
- Size
- 235mm x210mm x160 mm
- Weight
- 3±0.5kg
- Test time
- 5 min
- Memory
- 99999 results
- Operating condition
- 18°C~30°CO
