Chemistry Analyzer

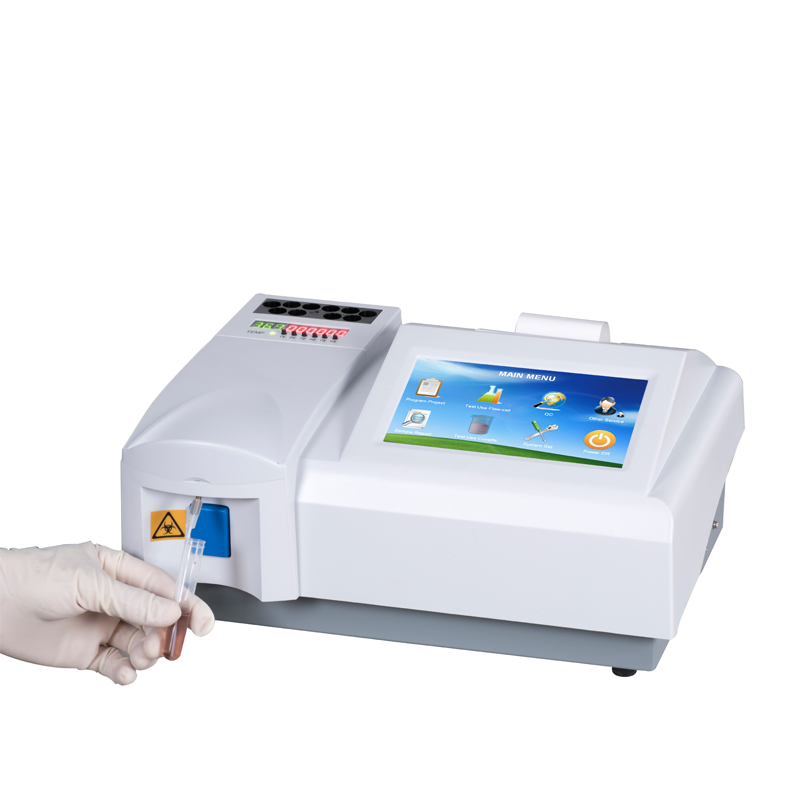

VC-3002B1 Chemistry Analyzer
- SKU
- VC-3002B1
- Brand
- MoreVET
- Manufactured by
- MoreVET
- Availability
- In stock
- ✓ Worldwide shipping
Clinical overview
Built for surgical precision
Features
- 10 incubators and three timers
- 7 inch Color LCD , Touch screen
- Flow cell and Cuvette test mode compatible
- Real time curve showing
- 7wavelength , 90 test item pre-programmed
- Memory for 10,000 sample results
- Light source hibernate function making lamp life longer
- RS232 interface, PC connecting
Technical Specifications
|
PARAMETERS |
SPECIFICATIONS |
|
Test mode |
Kinetic, End point, Two point, Absorbance |
|
Wavelength |
7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position |
|
Wavelength precision |
±2 nm, width ≤ 10nm |
|
Absorbance range |
0~4.500 Abs |
|
Absorbance precision |
outside 0.0001 Abs , inside 0.00001 Abs |
|
carry over |
< 1% |
|
Repeatability CV |
< 1% |
|
Incubator |
37°C、30°C、25°C、Precision : ±0.1°C |
|
Sample volume |
0~3000 uL (≥500uL recommend) |
|
Data Storage |
≥10000 |
|
Quality control curve |
X-bar,SD、CV%、L-J quality control curve for every test item |
|
Flow cell |
32 uL quartz glass, 10 mm |
|
Lamp |
Philips 6V 10W Halogen Lamp with long life |
|
Screen |
7 inch color LCD |
|
CPU |
ARM series high speed micro CPU |
|
Printer |
Internal thermal sensitive printer |
|
Interface |
RS-232 |
|
Work Environment |
Temperature 0°C ~ 40°C, Humidity: ≤80% |
|
Power supply |
100~240VAC，50-60Hz，100VA |
|
Dimension |
340(L)*270(W)*160(H) |
|
Weight |
5 kg |
Usual test list
|
Liver function |
ALT AST ALP T-BIL D-BIL TP ALB TTT CHE Nh3 |
|
Renal function |
BUN CRE UA URE CO2-CP γ-GT |
|
Lipids |
T-CHO TG HDL-C LDL-C |
|
Cardiac function |
CK CK-MB LDH |
|
Immune proteins |
IGA IGG IGM C3 |
|
Others |
GLU HGB AMS |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Test mode
- Kinetic, End point, Two point, Absorbance
- Wavelength
- 7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position
- Wavelength precision
- ±2 nm, width ≤ 10nm
- Absorbance range
- 0~4.500 Abs
- Absorbance precision
- outside 0.0001 Abs , inside 0.00001 Abs
- carry over
- < 1%
- Repeatability CV
- < 1%
- Incubator
- 37°C、30°C、25°C、Precision : ±0.1°C
- Sample volume
- 0~3000 uL (≥500uL recommend)
- Data Storage
- ≥10000
- Quality control curve
- X-bar,SD、CV%、L-J quality control curve for every test item
- Flow cell
- 32 uL quartz glass, 10 mm
- Lamp
- Philips 6V 10W Halogen Lamp with long life
- Screen
- 7 inch color LCD
- CPU
- ARM series high speed micro CPU
- Printer
- Internal thermal sensitive printer
- Interface
- RS-232
- Work Environment
- Temperature 0°C ~ 40°C, Humidity: ≤80%
- Power supply
- 100~240VAC，50-60Hz，100VA
- Dimension
- 340(L)*270(W)*160(H)
- Weight
- 5 kg
- Liver function
- ALT AST ALP T-BIL D-BIL TP ALB TTT CHE Nh3
- Renal function
- BUN CRE UA URE CO2-CP γ-GT
- Lipids
- T-CHO TG HDL-C LDL-C
- Cardiac function
- CK CK-MB LDH
- Immune proteins
- IGA IGG IGM C3
- Others
- GLU HGB AMS
