Vet Multiparameter Monitor

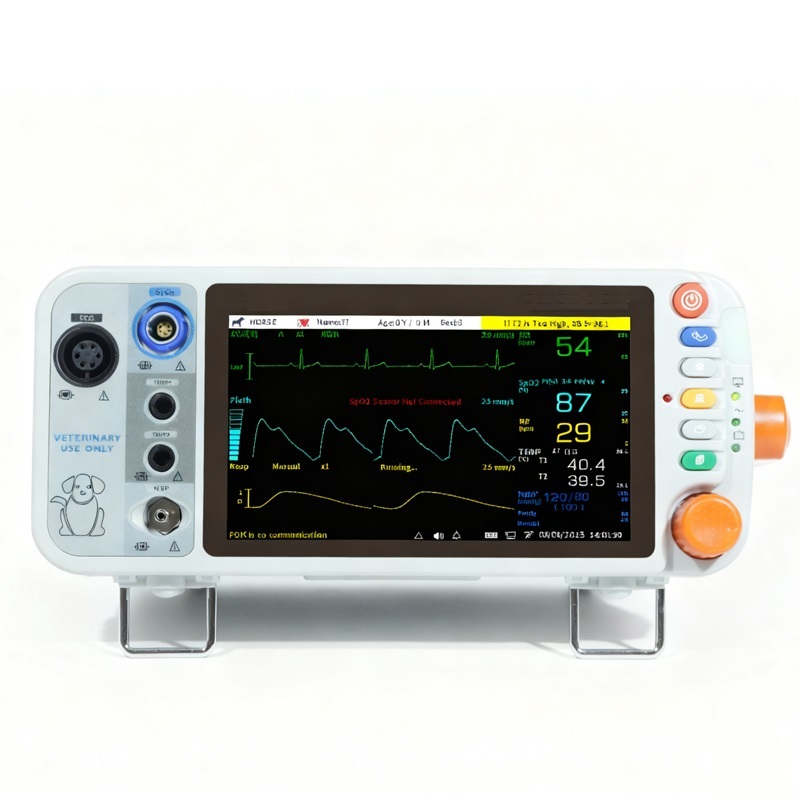

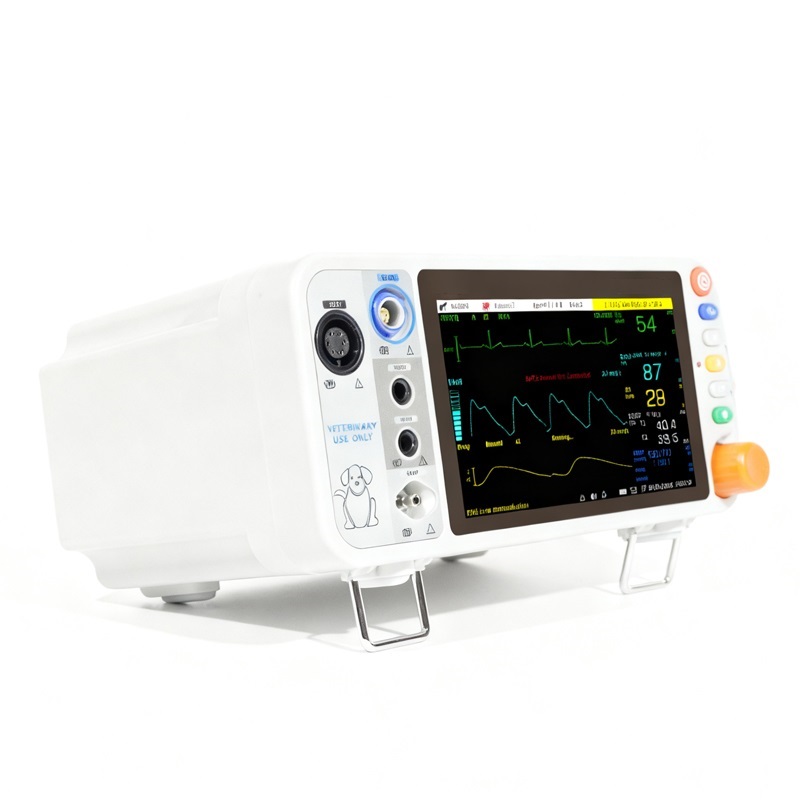

VET-2000V Vet Multiparameter Monitor

SKU: VET-2000V
Brand: MoreVET
Manufactured by: MoreVET
Availability: In stock

✓ Worldwide shipping

Regulatory: For professional veterinary use only. Certification and regulatory status vary by product and country; confirm local regulatory requirements before purchase or use.

Compare with similar items

Clinical overview

Built for surgical precision

Product Features

7″ high-resolution color LCD display with adjustable brightness
Lightweight and portable, easy for veterinarians to carry out
Built-in rechargeable lithium battery for long-term continuous operation
Selectable 3-lead and 5-lead ECG cables
Variety of NIBP cuffs for different-sized animals
Expanded heart rate values and veterinary-specific SpO2 sensors for multiple species
Widely used in pet hospitals and animal clinics
Special NIBP technology designed for animals ensures safety and accuracy

Technical Specifications

PARAMETER	SPECIFICATION
DISPLAY
Screen size	177.8 mm (7 in.), measured diagonally
Screen type	TFT LCD, white LED backlight, viewing cone of 60° and optimal viewing distance of 1.5 meter
Resolution	800 x 480 pixels
ECG
Measurement range	25bpm to 350bpm
Lead selection	I,II, III,V, aVF,aVL,aVR
Display gain	X1/4, X1/2, X1, X2, X4
Didplay sweep speed	6.25mm/s,12.5mm/s,25mm/s,50mm/s
Accuracy	±2BPM or ±2% (whichever is greater)
Resolution	1BPM
NIBP
Method	Oscillometric
Measurement range	0-300mmHg
Accuracy	Based on ANSI/AAMI SP10:1992 and 2002 Standards
Measurement time	30 to 50s typical , 180s maximum
AUTO interval times	2, 3, 5, 10, 30 min, or 1, 2 h
TEMPERATURE
Measuring range	0-50°
Accuracy	±0.2°C
Resolution	0.1°C
SPO2
Range	1%-100%
Accuracy	70-100% (±2% ),<70% undefined
Resolution	1%
Display sweep speed	10.00 mm/sec
PULSE RATE
Measurement range	25bpm to 350bpm
Accuracy	±2 bpm / ±2% (take maximum)
Resolution	1bpm
RESPIRATION
Measurement range	0-130rpm
Accuracy	±1rpm
Resolution	1rpm
SIDESTREAM ETCO2 (OPTIONAL)
Range	0-150mmHg
Accuracy	0-40mmHg (±2mmHg); 41-150mmHg (±10% of reading)
Resolution	0.1mmHg
Flow rate	50 ml/min ±10 ml/min
ELECTRICAL
Battery	Four new lithium batteries with 4,400mAh will typically provide 4.5 hours of monitoring with no external communication, no audible alarm sound, and at an ambient temperature of 25°C
Type	Lithium Batteries, 4,400mAh, DC 11.1V
Voltage	AC 100-240V, 50-60Hz, 80VA
ENVIRONMENTAL
Temperature	Transport and storage	-40°C to 75°C (-40°F to 167°F)
Humidity	Operating conditions	0°C to 50°C (32°F to 122°F)
Altitude	-500 to 5,000 m (-1,640 to 16,404 ft.)
Relative humidity	15% to 95% noncondensing
TREND
Memory	Saves a total of 120 hours of data events; saves date and time, alarm conditions, measurements
Tabular format	One table for all parameters
ALARMS
Categories	Patient status and system status
Priorities	Low, medium, and high
Notification	Audible and visual
Setting	Full storage, low battery and sensor off
Alarm volume level	45 to 85 decibels
Alarm system delay	< 10 seconds
DIMENSION AND WEIGHT
Weight	2.05kg (4.52 lb), including 1 battery
Dimensions	324mmW 129mmH183mmD (12.76in.W x 5.08in.H x 7.20in.D)
CONFIGURATION
Standard	SpO2 + ECG + NIBP + RESP + TEMP
Optional	1. SpO2; 2. SpO2 + NIBP; 3. SpO2 + NIBP + ECG; SpO2 + NIBP + TEMP; 4. SpO2 + ECG + NIBP + RESP + TEMP + ETCO2 etc.; 5. Lithium Battery 6. Trolley 7. Brace 8. IPMS8600 Central monitoring system

Technical specifications

Engineering at a glance

Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.

Screen size: 177.8 mm (7 in.), measured diagonally
Screen type: TFT LCD, white LED backlight, viewing cone of 60° and optimal viewing distance of 1.5 meter
Resolution: 800 x 480 pixels
Measurement range: 25bpm to 350bpm
Lead selection: I,II, III,V, aVF,aVL,aVR
Display gain: X1/4, X1/2, X1, X2, X4
Didplay sweep speed: 6.25mm/s,12.5mm/s,25mm/s,50mm/s
Accuracy: ±2BPM or ±2% (whichever is greater)
Resolution: 1BPM
Method: Oscillometric
Measurement range: 0-300mmHg
Accuracy: Based on ANSI/AAMI SP10:1992 and 2002 Standards
Measurement time: 30 to 50s typical , 180s maximum
AUTO interval times: 2, 3, 5, 10, 30 min, or 1, 2 h
Measuring range: 0-50°
Accuracy: ±0.2°C
Resolution: 0.1°C
Range: 1%-100%
Accuracy: 70-100% (±2% ),<70% undefined
Resolution: 1%
Display sweep speed: 10.00 mm/sec
Measurement range: 25bpm to 350bpm
Accuracy: ±2 bpm / ±2% (take maximum)
Resolution: 1bpm
Measurement range: 0-130rpm
Accuracy: ±1rpm
Resolution: 1rpm
Range: 0-150mmHg
Accuracy: 0-40mmHg (±2mmHg); 41-150mmHg (±10% of reading)
Resolution: 0.1mmHg
Flow rate: 50 ml/min ±10 ml/min
Battery: Four new lithium batteries with 4,400mAh will typically provide 4.5 hours of monitoring with no external communication, no audible alarm sound, and at an ambient temperature of 25°C
Type: Lithium Batteries, 4,400mAh, DC 11.1V
Voltage: AC 100-240V, 50-60Hz, 80VA
Temperature: Transport and storage -40°C to 75°C (-40°F to 167°F)
Humidity: Operating conditions 0°C to 50°C (32°F to 122°F)
Altitude: -500 to 5,000 m (-1,640 to 16,404 ft.)
Relative humidity: 15% to 95% noncondensing
Memory: Saves a total of 120 hours of data events; saves date and time, alarm conditions, measurements
Tabular format: One table for all parameters
Categories: Patient status and system status
Priorities: Low, medium, and high
Notification: Audible and visual
Setting: Full storage, low battery and sensor off
Alarm volume level: 45 to 85 decibels
Alarm system delay: < 10 seconds
Weight: 2.05kg (4.52 lb), including 1 battery
Dimensions: 324mmW *129mmH*183mmD (12.76in.W x 5.08in.H x 7.20in.D)
Standard: SpO2 + ECG + NIBP + RESP + TEMP
Optional: 1. SpO2; 2. SpO2 + NIBP; 3. SpO2 + NIBP + ECG; SpO2 + NIBP + TEMP; 4. SpO2 + ECG + NIBP + RESP + TEMP + ETCO2 etc.; 5. Lithium Battery 6. Trolley 7. Brace 8. IPMS8600 Central monitoring system

Documents & downloads

Regulatory paperwork & manuals

Pre-cleared documentation for this device. Full tender-pack originals are available on request.

Documents & downloads

Regulatory paperwork & manuals

This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
