VET Multiparameter Monitor

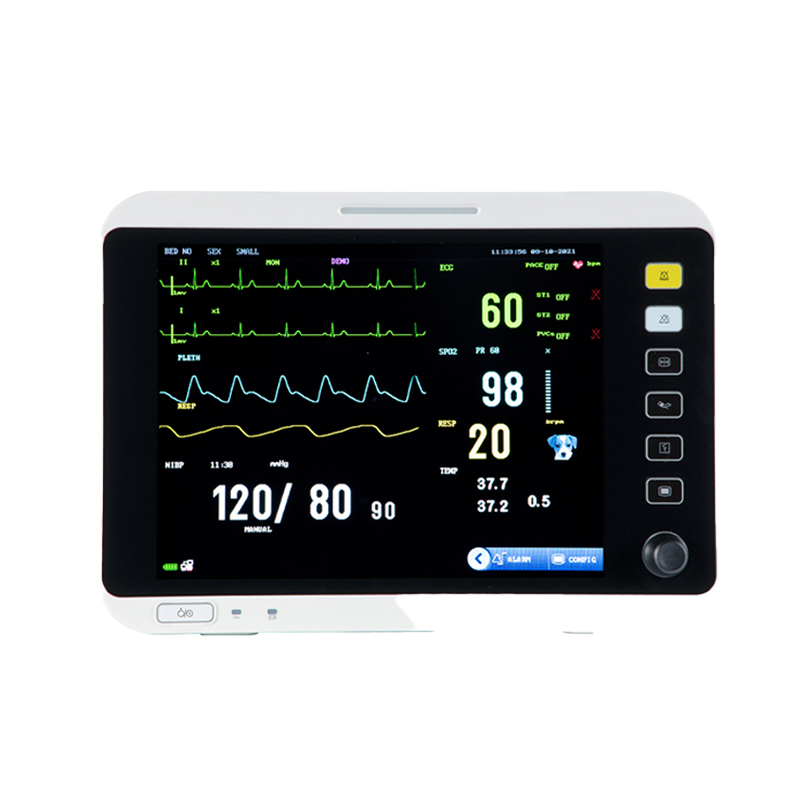

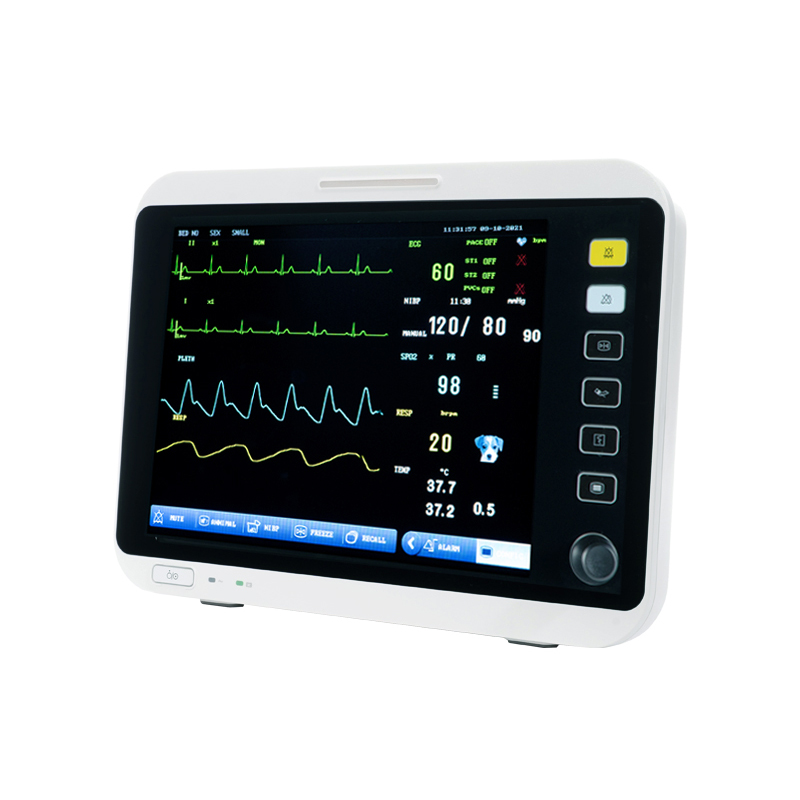

VET-M12 VET Multiparameter Monitor

SKU: VET-M12
Brand: MoreVET
Manufactured by: MoreVET
Availability: In stock

✓ Worldwide shipping

Regulatory: For professional veterinary use only. Certification and regulatory status vary by product and country; confirm local regulatory requirements before purchase or use.

Compare with similar items

Clinical overview

Built for surgical precision

Features

12-inch high-brightness LCD monitor.
Mirror display, new visual effect, more intimate protection monitor
Multiple working modes: diagnostic, monitoring, surgical mode.
Suitable for different groups of pets: large, medium, small pets.
Multiple display modes: standard, large character, trend graph, blood pressure list, etc
Support multi-lead display of ECG waveforms on the same screen.
Equipped with a blood pressure cuff for pets Accurate blood pressure measurement.
Multiple analysis functions.
Quick setup alarm f
Built-in high-capacity lithium battery, long standby time.
Suitable for use in a variety of conditions such as operating rooms.

Technical Specifications

PARAMETER	SPECIFICATION
ECG
Lead mode	3/5-lead ECG input
Lead selection	I, I, lI, aVR, aVL, aVF, V
Gain	AUTO, 2.5 mm/mV (x0.25), 5mm/mV (x0.5),10 mm/mV (x1), 20 mm/mV (x2)
Support functions	Support ST, QT and ARR functions
Bandwidth (-3dB)	Diagnostic mode: 0.05-150Hz
Monitor mode	0.5- 40Hz
Operation mode	1~25Hz
ST mode	0.05~40Hz
Signal quality display	Expression way: numerical display and waveform color
HR measurement range	10~400 bpm
HR resolution	1 bpm
HR accuracy	+1% or +1 bpm, whichever is greater
NIBP
Measurement parameters	SYS, DIA, MAP
Mode of operation	Manual, Sequence, Auto
Unit	mmHg/KPa
Measuring range of cuff pressure	0~300mmHg
Measurement range:	Big Animal	SYS:40~270mmHg
		DIA:10~215mmHg
		MEAN:20~235mmHg
	Medium Animal	SYS:40~200mmHg
		DIA:10~150mmHg
		MEAN:20~160mmHg
	Small Animal	SYS:40~135mmHg
		DIA:10~100mmHg
		MEAN:20~110mmHg
Static pressure accuracy	±3mmHg
Dynamic Pressure Measurement Error of Simulator	±5mmHg
Pressure resolution	1 mmHg or 0.1kPa
SpO2
Measuring range	0~100%
Sensitivity	High, Medium, Low
Accuracy	At 70~100%,+2%
	At 0~69, unspecified
Alarm range	0~100%
PR measurement range	20 bpm~300 bpm
PR resolution	1 bpm
PR accuracy	±1bpm (non-motion conditions)
PR alarm range	0~250 bpm
RESP.
Measurement parameter	Respiration rate and respiration waveform
Measurement method	Thoracic Electrical Bioimpedance
Measurement range	Big animal: 0~120 rpm
	Medium animal: 0~150 rpm
	Small animal: 0~150 rpm
Resolution	1 rpm
Accuracy	+2 rpm or +2% ，whichever is greater.
TEMPERATURE
Temp parameter	T1,T2,TD
Measurement site	Surface and coelom
Measuring range	0°C~50°C (32F~122*F)
Resolution	0.1°C or 0.1° F
IBP (OPTIONAL)
Measuring range	-50~300 mmHg
Resolution	1 mmHg
Accuracy	±2mmHg or 2% of the reading,whichever is greater (exclusive of transducer) ±4mmHg or 4% of the reading,whichever is greater (inclusion of transducer)
Dynamic	±4mmHg or 4% of the reading,whichever is greater
Unit	mmHg , KPa
Sensitivity of transducer	5uVN/mmHg, 2%
Transducer sites	ART/PA/CVP/L AP/RAP/ICP
CO2 (OPTONAL)
Measurement parameter	EtCO2, FiCO2, a CO2 waveform and awRR
Measurement method	Mainstream, sidestream
Unit	mmHg, kPa and %
EtCO2/FiCO2 measuring range	0% ~ 19.7% (0mmHg ~ 150mmHg)
BATTERY
Type	Rechargeable lithium battery,2000mAh
Operating time	Operating time under the normal use and full charge≥240 mins
SIZE & WEIGHT
Product size	305162290mm
Net Weight	4KG

Standard Configuration

3/5-lead ECG, HR, RESP, NIBP, SpO2, PR, TEMP
Rechargeable lithium battery

Optional Configuration

2-TEMP Probe,2-IBP,Suntech NIBP,Nellcor SpO2, Sidestreamor Mainstream EtCO2
Thermal Recorder
Central Working Station
Trolley or Wall Bracket

Technical specifications

Engineering at a glance

Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.

Lead mode: 3/5-lead ECG input
Lead selection: I, I, lI, aVR, aVL, aVF, V
Gain: AUTO, 2.5 mm/mV (x0.25), 5mm/mV (x0.5),10 mm/mV (x1), 20 mm/mV (x2)
Support functions: Support ST, QT and ARR functions
Bandwidth (-3dB): Diagnostic mode: 0.05-150Hz
Monitor mode: 0.5- 40Hz
Operation mode: 1~25Hz
ST mode: 0.05~40Hz
Signal quality display: Expression way: numerical display and waveform color
HR measurement range: 10~400 bpm
HR resolution: 1 bpm
HR accuracy: +1% or +1 bpm, whichever is greater
Measurement parameters: SYS, DIA, MAP
Mode of operation: Manual, Sequence, Auto
Unit: mmHg/KPa
Measuring range of cuff pressure: 0~300mmHg
Measurement range:: Big Animal SYS:40~270mmHg
Medium Animal: SYS:40~200mmHg
Small Animal: SYS:40~135mmHg
Static pressure accuracy: ±3mmHg
Dynamic Pressure Measurement Error of Simulator: ±5mmHg
Pressure resolution: 1 mmHg or 0.1kPa
Measuring range: 0~100%
Sensitivity: High, Medium, Low
Accuracy: At 70~100%,+2%
Alarm range: 0~100%
PR measurement range: 20 bpm~300 bpm
PR resolution: 1 bpm
PR accuracy: ±1bpm (non-motion conditions)
PR alarm range: 0~250 bpm
Measurement parameter: Respiration rate and respiration waveform
Measurement method: Thoracic Electrical Bioimpedance
Measurement range: Big animal: 0~120 rpm
Resolution: 1 rpm
Accuracy: +2 rpm or +2% ，whichever is greater.
Temp parameter: T1,T2,TD
Measurement site: Surface and coelom
Measuring range: 0°C~50°C (32F~122*F)
Resolution: 0.1°C or 0.1° F
Measuring range: -50~300 mmHg
Resolution: 1 mmHg
Accuracy: ±2mmHg or 2% of the reading,whichever is greater (exclusive of transducer) ±4mmHg or 4% of the reading,whichever is greater (inclusion of transducer)
Dynamic: ±4mmHg or 4% of the reading,whichever is greater
Unit: mmHg , KPa
Sensitivity of transducer: 5uVN/mmHg, 2%
Transducer sites: ART/PA/CVP/L AP/RAP/ICP
Measurement parameter: EtCO2, FiCO2, a CO2 waveform and awRR
Measurement method: Mainstream, sidestream
Unit: mmHg, kPa and %
EtCO2/FiCO2 measuring range: 0% ~ 19.7% (0mmHg ~ 150mmHg)
Type: Rechargeable lithium battery,2000mAh
Operating time: Operating time under the normal use and full charge≥240 mins
Product size: 305*162*290mm
Net Weight: 4KG

Documents & downloads

Regulatory paperwork & manuals

Pre-cleared documentation for this device. Full tender-pack originals are available on request.

Documents & downloads

Regulatory paperwork & manuals

This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
