Veterinary Warming System

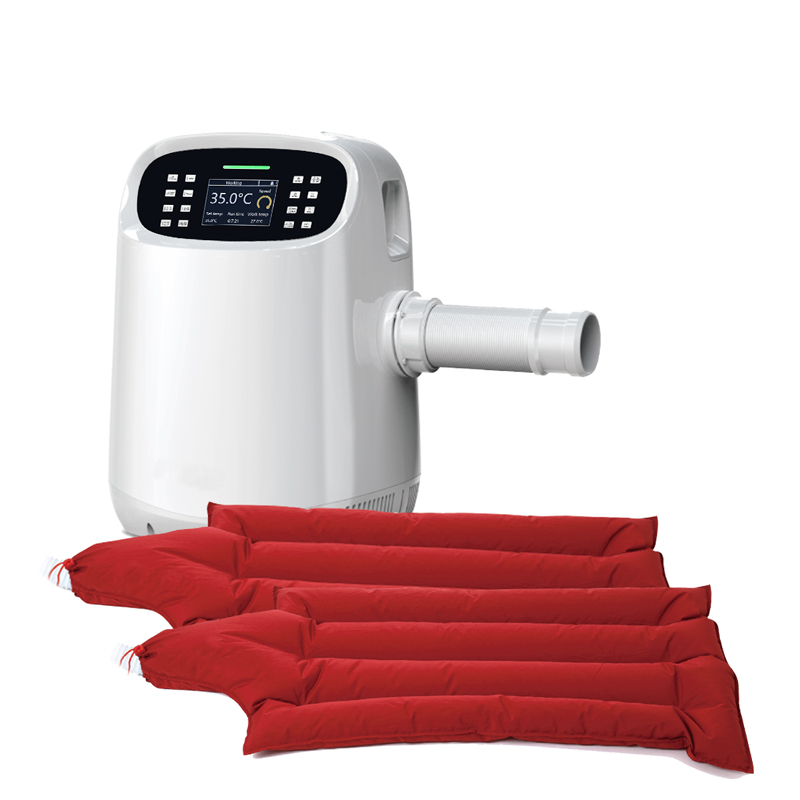

VET-B01 Veterinary Warming System
- SKU
- VET-B01
- Brand
- MoreVET
- Manufactured by
- MoreVET
- Availability
- In stock
- ✓ Worldwide shipping
Clinical overview
Built for surgical precision
Features
- Veterinary warming system utilizes the convection of air to transmit the hot air generated by the main unit to the through the pipeline, so that the heat energy is evenly distributed and transmitted to the blanket to achieve heat preservation or heating effect. For the prevention and treatment of hypothermia in small animals, it can accelerate the recovery of small animals and shorten the hospitalization time of small animals.
- Multiple Wind Speed: 8 adjustable wind speed can apply to different patients in different environments
- Multiple Temperature Control Protection: Dual hardware and software temperature protection
- Multi-surface warming heat blanket: Two types of material
- Air Purification Function: plasma air purification function.
Technical Specifications
|
PARAMETER |
SPECIFICATION |
|
Reusable blankets size |
120cm x 60cm |
|
Temperature setting |
35.0°C～41.0°C、95.0°F～105.8°F |
|
Temperature increment |
0.1°C, 0.1°F |
|
Optional unit |
°C & °F |
|
Warming up time |
2 minutes |
|
Working mode |
Continuous working |
|
Operation time |
Real time display |
|
Heating blanket mode |
Natural air mode and temperature control mode |
|
Operating time range |
Time reset after 12 hours of operation Real-time display of operating time cleared after power off and on again |
|
Sound and light alarm function |
High temperature alarm, low temperature alarm,heater failure alarm, fan failure alarm,temperature sensor failure, forgetting operation alarm |
|
Display |
3.5-inch color TFT display |
|
Air volume |
8 Level |
|
Air volume error |
±3m/s |
|
Quick temperature setting |
4 shortcut setting keys for 35°C, 37°C, 39°C, 41°C |
|
Alarm volume |
3 Level |
|
Mute time |
2 minutes |
|
Ambient temperature function |
Available |
|
Warming heat blanket |
Two types of material |
|
Air purification |
Plasma air purification |
|
Air duct |
Stretchable up to 2 meters |
|
Noise |
During normal operation noise≤70dB(A) |
|
Power consumption |
1500VA |
|
Power supply |
AC220V, 50Hz/60Hz |
|
Type of protection against electric shock |
Class I |
|
Degree of protection against electric shock |
Type BF |
|
Operation environment |
Temp: +5°C~+40°C; Humidity: 20%~90%; Atmospheric pressure: non-condensation, 70KPa~106Kpa |
|
Storage environment |
Temperature:-20°C~+55°C; Humidity: 10~95%; Atmospheric pressure: non-condensation, 70KPa~106Kpa |
|
Degree of protection against ingress of liquid |
IPX2 |
|
Dimension |
260mm x 325mm x 325mm |
|
Weight |
7.5KG |
|
Overheat protection function |
Over-temperature protection device, double protection of software and hardware, real-time monitoring of the temperature of the heater, hardware forcible power-off protection, to prevent the temperature being too high |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Reusable blankets size
- 120cm x 60cm
- Temperature setting
- 35.0°C～41.0°C、95.0°F～105.8°F
- Temperature increment
- 0.1°C, 0.1°F
- Optional unit
- °C & °F
- Warming up time
- 2 minutes
- Working mode
- Continuous working
- Operation time
- Real time display
- Heating blanket mode
- Natural air mode and temperature control mode
- Operating time range
- Time reset after 12 hours of operation Real-time display of operating time cleared after power off and on again
- Sound and light alarm function
- High temperature alarm, low temperature alarm,heater failure alarm, fan failure alarm,temperature sensor failure, forgetting operation alarm
- Display
- 3.5-inch color TFT display
- Air volume
- 8 Level
- Air volume error
- ±3m/s
- Quick temperature setting
- 4 shortcut setting keys for 35°C, 37°C, 39°C, 41°C
- Alarm volume
- 3 Level
- Mute time
- 2 minutes
- Ambient temperature function
- Available
- Warming heat blanket
- Two types of material
- Air purification
- Plasma air purification
- Air duct
- Stretchable up to 2 meters
- Noise
- During normal operation noise≤70dB(A)
- Power consumption
- 1500VA
- Power supply
- AC220V, 50Hz/60Hz
- Type of protection against electric shock
- Class I
- Degree of protection against electric shock
- Type BF
- Operation environment
- Temp: +5°C~+40°C; Humidity: 20%~90%; Atmospheric pressure: non-condensation, 70KPa~106Kpa
- Storage environment
- Temperature:-20°C~+55°C; Humidity: 10~95%; Atmospheric pressure: non-condensation, 70KPa~106Kpa
- Degree of protection against ingress of liquid
- IPX2
- Dimension
- 260mm x 325mm x 325mm
- Weight
- 7.5KG
- Overheat protection function
- Over-temperature protection device, double protection of software and hardware, real-time monitoring of the temperature of the heater, hardware forcible power-off protection, to prevent the temperature being too high
Documents & downloads
Regulatory paperwork & manuals
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
