Compressor Nebulizer

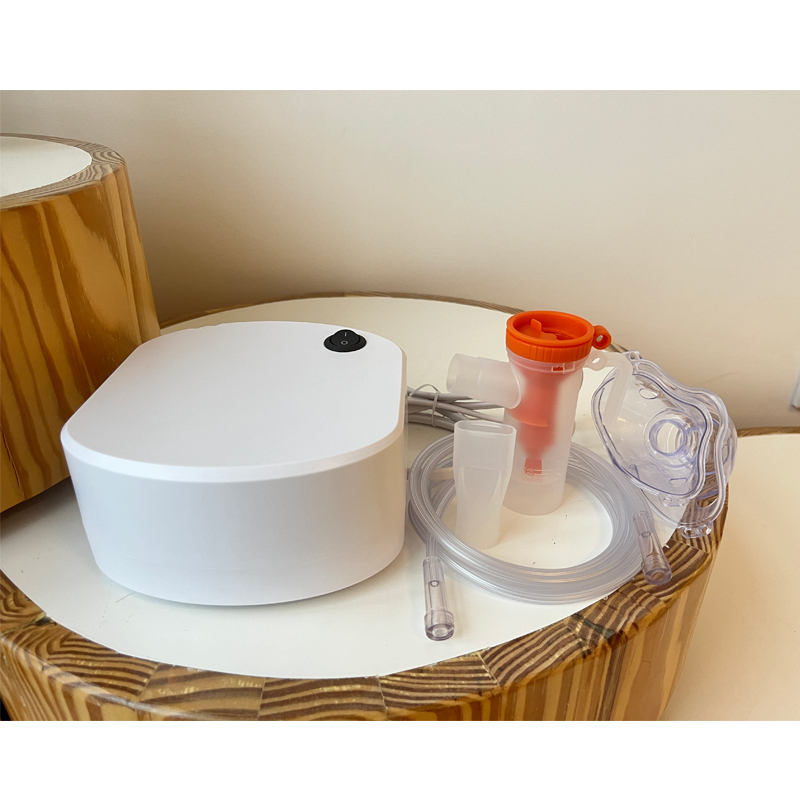

VET-N2 Compressor Nebulizer
- SKU
- VET-N2
- Brand
- MoreVET
- Manufactured by
- MoreVET
- Availability
- In stock
- âś“ Worldwide shipping
Clinical overview
Built for surgical precision
Features
Medical grade, finer particles:Realize the atomization effect of medical grade, covering the respiratory tract, trachea, alveoli and lower respiratory tract, etc., suitable for most respiratory care
Â
Stable mist output, smooth atomization without throat choking:The atomization is stable and can run continuously, avoiding throat suffocation caused by uneven speed.Oil-free lubricated plug pumps are healthier and increase machine life
Â
Comfortable material, suitable for many pet:The mask material is safe, skin-friendly and has no peculiar smell, can be disinfected daily, and is environmentally friendly and safe even after repeated use.
Â
Atomization technology, compatible with a variety of drugs:The nebulizer does not add water and is compatible with a variety of drugs
Â
Grid cooling design:Efficiently ensure better discharge of internal heat, 24 hours from morning to night with different intervals, the atomizer works more stably, has a long life, and works for a long time
Â
Technical Specifications
|
PARAMETER |
SPECIFICATION |
|
Power supply |
Input: AC220V,50Hz |
|
Maximum atomization rate |
0.2mL/ min |
|
The residual amount of liquid medicine |
≤1.0mL |
|
Mist particle size(MMD) |
4um ± 25% |
|
Output pressure |
60-130kPa |
|
Fuse tube |
T2A/ 250VΦ2×10 |
|
Free flow of compression pump |
≥4.5L/ min |
|
Noise |
≤60dB(A) |
|
Input power |
≤100W |
|
Safety classification |
-Equipment that cannot be used in the -presence of flammable anesthetic gas -mixed with air or flammable anesthetic -gas mixed with oxygen or nitrous oxide |
|
Protection level |
IPX0 |
|
Contraindications |
None |
|
Dimension |
LÂ 15 x W 15 x HÂ 9CM |
|
Weight (without battery) |
About 1250g (without battery) |
|
Normal operating conditions |
-Temperature range: 5°C ~ 40°C -Relative humidity range: 30%~80% -Atmospheric pressure range: 86kPa~106kPa |
|
Transportation and storage environment restrictions |
Ambient temperature range: -20°C~+55°C |
|
Relative humidity range: 10%~93% |
|
|
Atmospheric pressure range: 70kPa~106kPa |
Â
Â
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Power supply
- Input: AC220V,50Hz
- Maximum atomization rate
- 0.2mL/ min
- The residual amount of liquid medicine
- ≤1.0mL
- Mist particle size(MMD)
- 4um ± 25%
- Output pressure
- 60-130kPa
- Fuse tube
- T2A/ 250VΦ2×10
- Free flow of compression pump
- ≥4.5L/ min
- Noise
- ≤60dB(A)
- Input power
- ≤100W
- Safety classification
- -Equipment that cannot be used in the -presence of flammable anesthetic gas -mixed with air or flammable anesthetic -gas mixed with oxygen or nitrous oxide
- Protection level
- IPX0
- Contraindications
- None
- Dimension
- LÂ 15 x W 15 x HÂ 9CM
- Weight (without battery)
- About 1250g (without battery)
- Normal operating conditions
- -Temperature range: 5°C ~ 40°C -Relative humidity range: 30%~80% -Atmospheric pressure range: 86kPa~106kPa
- Transportation and storage environment restrictions
- Ambient temperature range: -20°C~+55°C
Documents & downloads
Regulatory paperwork & manuals
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
