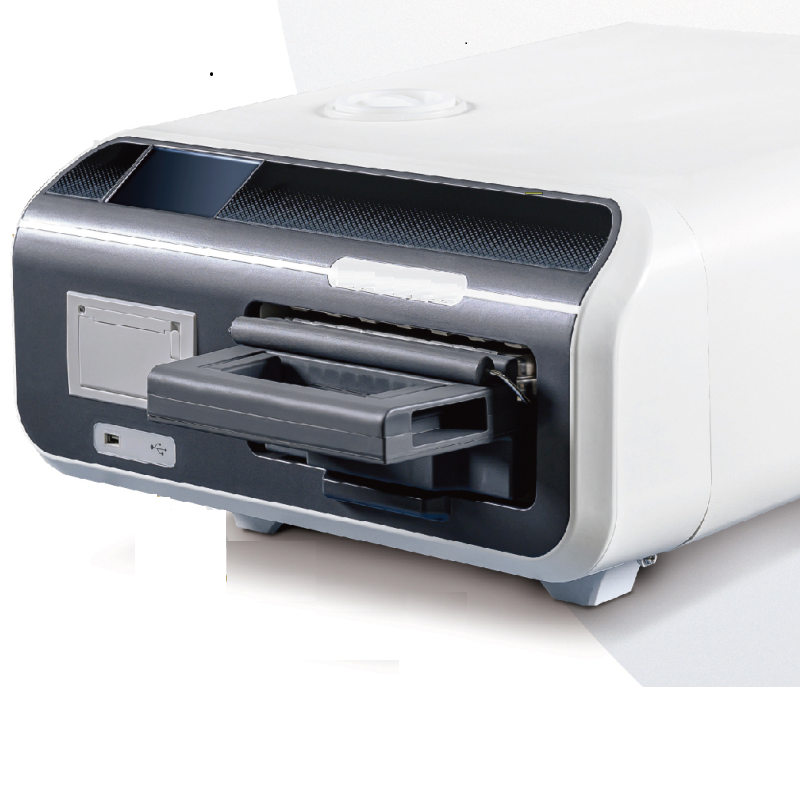

VN Series Digital Cassette Sterilizer
Clinical overview
Product Instruction
Digital Cassette Sterilizer is a fully automatic rapid sterilization equipment that uses pressure steam as a medium. Suitable for sterilization of medical devices that can withstand steam pressure, such as dental handpieces, ophthalmic precision instruments, dental rigid endoscope and surgical instrument, etc.
Features
Rapid:
The entire process takes only 9-12 minutes. Applicable to continuous surgery to improve clinical work efficiency.
Safety:
Reduce the heating time of sterilization equipment and extend the service life of the equipment.
Convenient:
The sterilization box can be used as a vehicle, and one machine can be equipped with multiple boxes, which is easy to operate.
Intelligent:
digital intelligent control, sterilization curve, pressure, temperature, time, status can be real-time displayed; alarm record, sterilization record can be digitally saved.
A variety of parameter output methods:
U disk storage, built-in microcomputer control system storage, standard equipped with built-in printer.
Technical Specifications
|
Sterilization program |
Class |
|
Unwrapped instrument |
N |
|
Loading method |
Shelf loading, double layers |
|
Hollow unwrapped instrument 1 |
S |
|
Hollow unwrapped instrument 2 |
S |
|
Hollow wrapped instrument 1 |
S |
|
Hollow wrapped instrument 2 |
S |
|
Rubber 1 |
S |
|
Rubber 2 |
S |
|
Design pressure |
0.28Mpa |
|
Temperature display accuracy |
0.1°c |
|
Design temperature |
142°c |
|
Cavity material |
SUS304 stainless steel |
|
Sterilization temperature |
121°C-134°C |
|
Maximum working pressure |
0.23Mpa |
|
Temperature uniformity |
Range: 1.0~50.0ml, (0.1ml step) |
|
Interface |
≤+0.5°C |
|
Optional |
USB real-time sterilization data storage |
Optional multiple sterilization racks
|
Order No. |
Volume |
Water tank Volume |
Chamber size (mm) |
Dimensions (mm) |
NW |
Voltage |
Frequency |
Power |
|
VN-5D |
5L |
5L |
380x180x80 |
595x476x208
|
45KG |
110V/220V |
50HZ |
1.3Kw |
|
VN-5DL |
5.2L |
5L |
490x180x80 |
595x476x208 |
45KG |
110V/220V |
50HZ |
1.3Kw |
