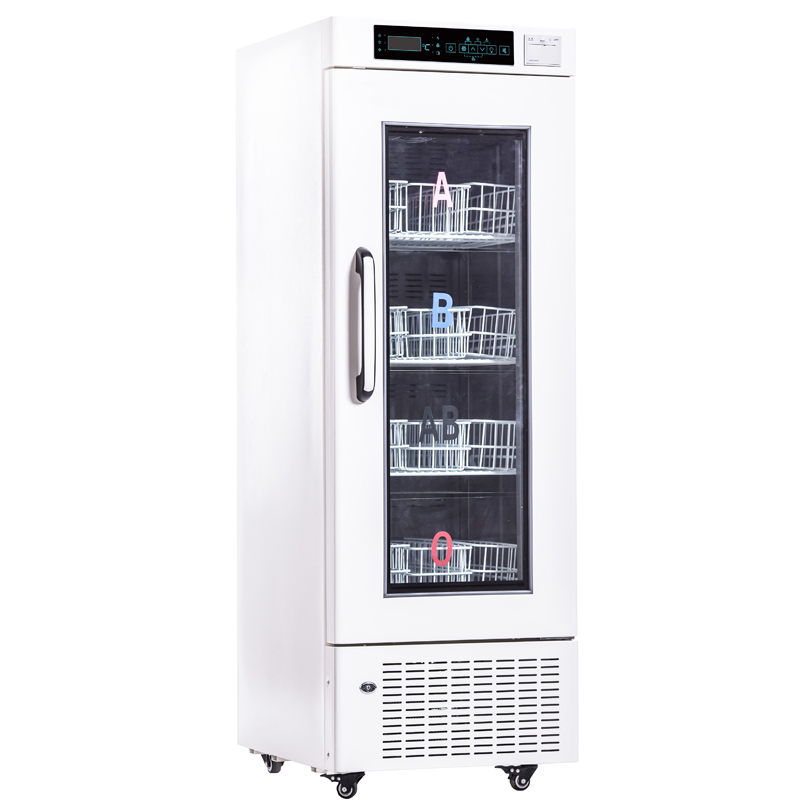

VR-V208 Blood Bank Refrigerator (4°C)
Clinical overview
Product Description
VR-V208 Blood bank refrigerator (208 Liter) is an essential piece of equipment in the immunohematology department and provides safe and convenient storage of whole blood, blood components (E.g, blood cells, plasma), and reagents. It ensures freshness and integrity of blood and blood components.ABR-V208 can store a total of 132 units of 450ml blood bags.
Technical Specifications
|
Performance |
|
|
Shelf/drawer |
Shelves/4 |
|
Cooling method |
Forced Air Cooling |
|
Defrost |
Auto |
|
Temperature range |
4±1℃ |
|
Ambient temperature |
10~32℃ |
|
Noise (db) |
51.2dB(A) |
|
Refrigeration System |
|
|
Refrigerant |
R134a |
|
Temp.controller |
Microprocessor |
|
Sensor |
NTC |
|
Display |
Digital |
|
Internal Material |
Stainless steel |
|
External material |
Color sprayed steel |
|
Alarms |
|
|
High/low temp |
Y |
|
Power failure |
Y |
|
Temperature controller failure |
Y |
|
Backup battery malfunction |
Y |
|
Door ajar |
Y |
|
Power failure backup system (alarm) |
72h |
|
Electrical Data |
|
|
Voltage Frequency (v/Hz) |
110V/220V 50/60Hz |
|
Power(W) |
183W |
|
Current (A) |
0.8 |
|
Power consumption |
2.22kWh/24h |
|
Compressor QTY |
1 EMBRACO |
|
Dimensions |
|
|
Capacity (L/cu.ft) |
208/7.34 |
|
Blood bags (450ml) |
132 |
|
Exterior size (W*D*H)(mm) |
540*640*1530 |
|
Interior size (W*D*H)(mm) |
432*462*978 |
|
Package size (W*D*H)(mm) |
590*700*1700 |
|
CBM |
0.7 |
|
NT./GT.(kg) |
96/120 |
|
Other |
|
|
Outer door/Type |
1/Heating & Foam glass door |
|
Light |
LED |
|
Inner door |
4 |
|
Test hole |
1/25mm |
|
Castor |
Y |
|
USB port |
Optional |
|
Thermal printer |
Y |
|
Temperature recorder |
Optional data logger |
Technical specifications
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
Documents & downloads
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
