Elisa Reader

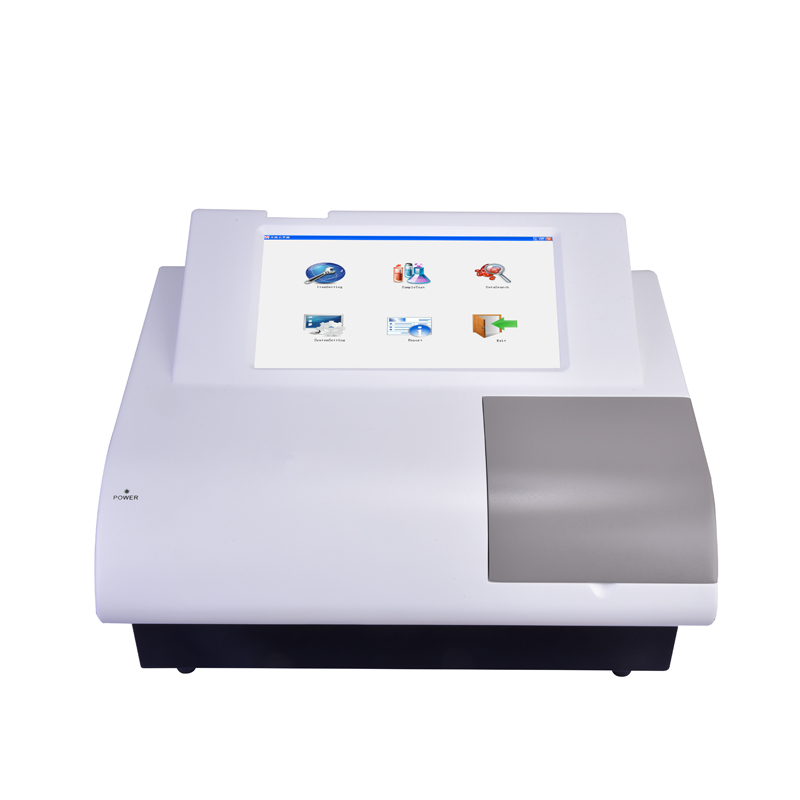

VRR-201 Elisa Reader
- SKU
- VRR-201
- Brand
- MoreVET
- Manufactured by
- MoreVET
- Availability
- In stock
- ✓ Worldwide shipping
Clinical overview
Built for surgical precision
Features
- Windows operation interface, figure button, mouse operation, touch screen.
- 96-well plate, multiple tests in the single plate.
- Arrangement of Test item in micro-plate can be store and re-use
- Parameter can be modified and stored
- Plate shaking, speed and time adjustable
- Open system, test item and parameters can be added or modified.
- Large storage for 1000 test item and 1,000,000 results
- 10.4 inch color touch LCD
- Printing comprehensive report, include hospital and patient information and test results
- Built-in portable computer, easy to use.
Technical Specifications
|
PARAMETER |
SPECIFICATION |
|
Microplate types |
96-well plate(U,V,or plat-bottom) |
|
Wavelength |
405nm,450nm,492nm,630nm,4 free positions for additional filters wavelength accuracy < 2nm |
|
Reading range |
0.000-4.000 Abs |
|
Measurement range |
0.000-3.000Abs |
|
Light source |
LED, >100,000 hours |
|
Measuring system |
8-channel optical system |
|
Test mode |
End-point, kinetic, Multi-wave analysis |
|
Resolution |
<1% or ±0.001Abs |
|
Stability |
<±0.005Abs/10min |
|
Well Coincidence |
≤0.015A |
|
Linearity |
r > 0.999 |
|
Repeatability |
< 0.3% |
|
Reading speed |
5s single wavelength , 10s double wavelength |
|
QC |
West guard Multi-rule, automated QC alert |
|
Self-Checking function |
Self-checking and calibration function |
|
CPU |
High-speed CPU |
|
Printer |
External jet printer, multi-form patient report |
|
Interface |
RS232 interface, USB |
|
Power supply |
220VAC 15% or 110VAC 15%50-60Hz 100W |
|
Work environment |
Temp 5°C-40°C；Humi ≤85% |
|
Machine Dimension |
44CM*37CM*24CM |
|
Weight |
13 KG |
Technical specifications
Engineering at a glance
Documentation, IFU and DOCs available on request — contact our sales team for the full regulatory file.
- Microplate types
- 96-well plate(U,V,or plat-bottom)
- Wavelength
- 405nm,450nm,492nm,630nm,4 free positions for additional filters wavelength accuracy < 2nm
- Reading range
- 0.000-4.000 Abs
- Measurement range
- 0.000-3.000Abs
- Light source
- LED, >100,000 hours
- Measuring system
- 8-channel optical system
- Test mode
- End-point, kinetic, Multi-wave analysis
- Resolution
- <1% or ±0.001Abs
- Stability
- <±0.005Abs/10min
- Well Coincidence
- ≤0.015A
- Linearity
- r > 0.999
- Repeatability
- < 0.3%
- Reading speed
- 5s single wavelength , 10s double wavelength
- QC
- West guard Multi-rule, automated QC alert
- Self-Checking function
- Self-checking and calibration function
- CPU
- High-speed CPU
- Printer
- External jet printer, multi-form patient report
- Interface
- RS232 interface, USB
- Power supply
- 220VAC 15% or 110VAC 15%50-60Hz 100W
- Work environment
- Temp 5°C-40°C；Humi ≤85%
- Machine Dimension
- 44CM*37CM*24CM
- Weight
- 13 KG
Documents & downloads
Regulatory paperwork & manuals
Pre-cleared documentation for this device. Full tender-pack originals are available on request.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
