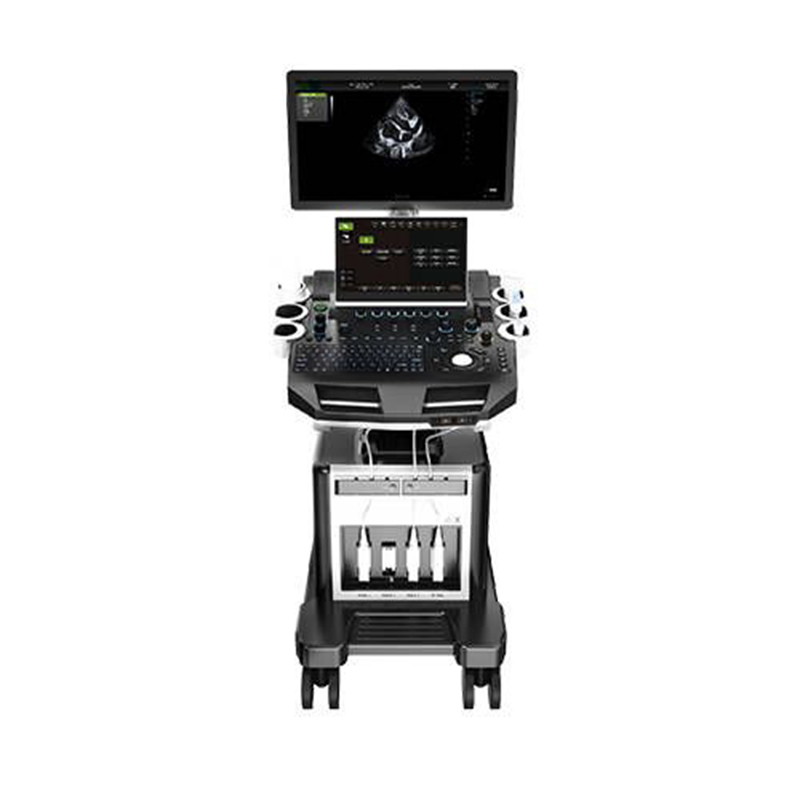

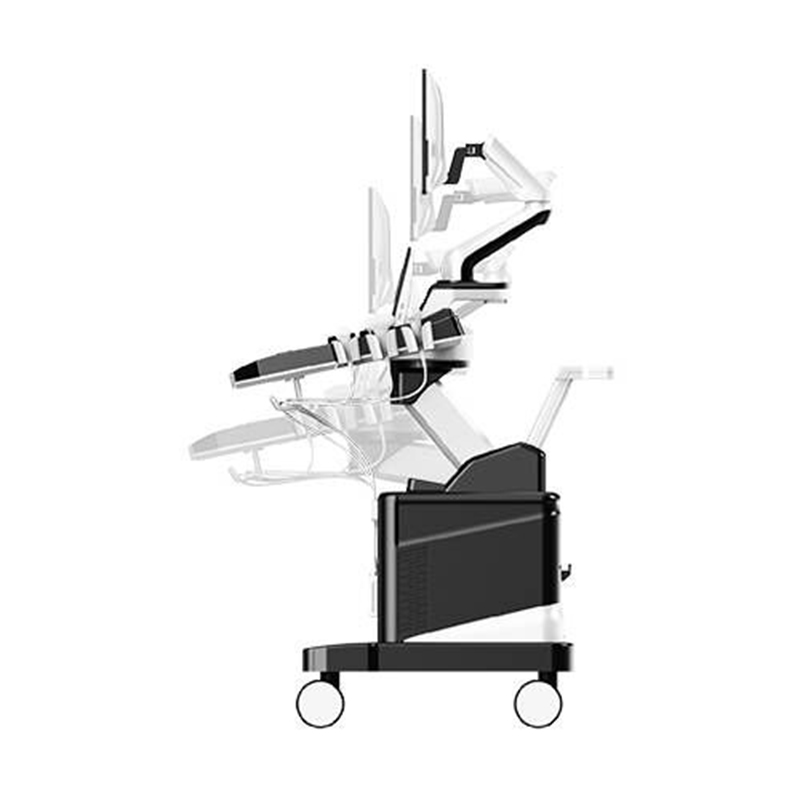

Echocardiography Trolley Color Doppler Ultrasound Scanner

PARAMETER

SPECIFICATION

2D Imaging Mode

Gain

0-100, Step 1 adjustable

TGC

8 segment adjustable

Dynamic

30-180, 35 level, step 5 adjustable

Speckle reduction

0-5, 5 level

Space Synthesis

0-2, 2 level (Liner probe: 3 level, cardiac probe:0)

Sound power

2-10, 9 level

Edge Enhancement

0-5, 5 level

Maximum focus point

≥7, which can be moved throughout the whole process

Grey scale

0-67, 67 level

False color

0-67, 67 level

Image style

Soft-Comparison, 2 level

Frame correlation

0-4, 4 level adjustable

Line density

low, middle, high, 3 level

Noise reduction

0-5, 5 level

The screen has real-time display of voice power, probe frequency, dynamic range, pseudo color, gray scale and other 11 parameters can be adjusted.

Color Doppler Imaging Mode

Blood gain

0-100, Step 2

Parameter display

Velocity, Variance

B-Restrain (B/W restrain)

0-7, 7 level

Speed Through

0-8, 8 level

Sampling number

6-24, 7 level

Blood flow preferred

0-8, 8 level

Filtering

1-6, 6 level

Sound power

2-6, 4 level

Noise reduction

0-4, 4 level

Smooth treatment

0-4, 4 level

Frame correlation

0-6, 6 level

Chromatography (Blood flow graph)

0-37, 37 level

Line density

Low-Middle-High, 3 level

Frequency

4 level adjustable

Velocity

Minimum 0.4K, Maximum 40.5K

Convex probe

0.4K-4.3K-38.5K

Linear probe

0.4K-14.7K-39.0K

Trans-vaginal probe

0.4K-7.8K-39.7K

Volume probe

0.4K-4.2K-34.8K

Micro-convex probe

0.4K-10.3K-40.5K

Cardiac probe

0.4K-7.8K-39.7K

PS: The frequency of the probe changes and the frequency value changes

PS: Frame rate changes with speed

Pulse wave Doppler (PW)

Gain

0-100, Step 2

Spectrum envelope function: real time automatic spectrum envelope, manual spectrum envelope, and other modes.

The system automatically analyses and displays various data such as PSV, EDV, RI, PI, S/D, ACC, HR and so on.

Can wake up or close.

Sample volume

0.5mm- 30mm

Blood angel

-75—75 degree, Step 5

False color

0-67, 67 level

Dynamic range

20-40, 4 level

Filter

0-9, 9 level

Smooth treatment

1-4, 4 level

Sound power

2-5, 4 level

Volume

0-100, 10 level, Step 10

Audio filtering

0-4, 4 level

Base line

-1.0~1.0

Grey map

0-67, 67 level

Scan velocity

100-500, 6 level

PRF

Minimum 0.5K, Maximum 87.5K

Convex probe

0.5K-4.3K-63.3K

Linear probe

0.5K-14.5K-78.4K

Trans-vaginal probe

0.5K-8.1K-78.4K

Volume probe

0.5K-4.2K-53.8K

Micro-convex probe

0.5K-10.3K-81.1K

Cardiac probe

0.5K-4.3K-87.5K

Frequency

4 level

PS: The frequency of the probe changes and the PRF value changes

PS: The frequency of the probe changes and the frequency value changes

Continuous Wave Doppler (CW)

Support probe

Cardiac probe

Adjustment of B mode parameters is switchable

Gain

0-100, Step 2

Sampling line position is adjustable

PRF

0.9K~36.1K

Baseline

-1.0~1.0

Blood angel

-75~75 degree

Grey map

0-67

Scan velocity

100-300

False color

0-67

Dynamic range

20-40

Filtering

0-9, 9 level

Smooth treatment

1-4

Frequency

2.0MHz/2.3MHz/2.5MHz/3.0MHz, 4 level adjustable

Sound power

2-5

Volume

0-100

Audio Filtering

0-4

Anatomical M imaging

Support probe

Convex probe, Linear probe,Cardiac probe

Adjustment of B mode parameters is switchable

Gain

0-100, Step 2

M Sampling line angel is adjustable

M Sampling line length is adjustable

Sampling line: 3, Can be displayed or hidden separately

Blood flow M mode (MC)

Adjustment of B mode parameters is switchable

Gain

0-100, Step2

MC Sampling line angel is adjustable

MC Sampling line length is adjustable

Frequency

4 level

Sampling number

6-24

Speed through

0-8, 8 level

Scan velocity

150-500

Frame correlation

0-6, 6 level

Filtering

1-6, 6 level

Blood flow preferred

0-8, 8 level

Smooth treatment

0-4, 4 level

Map

0-37, 37 level

Elastography

Adjustment of B mode parameters is switchable

Gain

0-100, Step 2

B/E, Double real-time display on the same screen

Probe displacement curve display

Up/Down

Pressure indicator bar display

Frequency

8-9 level, Adjustable; According to the probe display

Noise reduction

0-2, 2 level

Frame correlation

0-3, 3 level

Comparison

0-13, 13 level

False color

0-3, 3 level

Don’t support cardiac probe

Tissue Doppler imaging (TDI)

Support probe

Cardiac probe

Adjustment of B mode parameters is switchable

Gain

0-100, step 2

ROI area adjustable

Sampling number

6-24

Velocity

0.4K-8.0K

Frame correlation

0-6, 6 level

Tissue preferred

0-7, 7 level

Frequency

2.0MHz/2.3MHz/2.5MHz/3.0MHz

Support color reversal

Strain rate imaging

Support probe

Cardiac probe

Adjustment of B mode parameters is switchable

ROI area adjustable

Gain

0-100, Step 2

Sampling number

6-24, 6 level

Axial average

1-4, 4 level

Velocity

0.4K-8K

Frame correlation

0-6, 6 level

Tissue optimization

0-7, 7 level

Panoramic imaging

Support probe

Linear probe

Speckle Reduction

0-5, 5 level

Deflection imaging

Support probe

Linear probe

Adjustment of B mode parameters is switchable

Deflection angel

8 level

Speckle reduction

0-5, 5 level

Dynamic rate

30-180, Step 5

Line density

low-middle-high, 3 level

Frame Correlation

0-4, 4 level

False color

0-67, 67 level

Image style

Soft-Comparison, 2 level

Noise reduction

0-5, 5 level

Edge Enhancement

0-5, 5 level

Sound power

2-10, 8 level

Grey map

0-67, 67 level

Trapezoidal imaging

Probe support

linear probe

Adjustment of B mode parameters is switchable

Deflection angel

8 level

Speckle reduction

0-5, 5 level

Dynamic rate

30-180, Step 5

Line density

low-middle-high, 3 level

Frame Correlation

0-4, 4 level

False color

0-67, 67 level

Image style

Soft-Comparison, 2 level

Noise reduction

0-5, 5 level

Edge Enhancement

0-5, 5 level

Sound power

2-10, 8 level

Grey map

0-67, 67 level

Space Synthesis

0-2, 2 level

Freehand 3D imaging

Support probe

convex probe, linear probe

Display model

4 pictures

Image Rotation X/Y/Z Axis

Multi-slice Visibility

Real-time 4D imaging

Support probe

4D volume probe

Adjustment of B mode parameters is switchable

Gain

0-100, Step 2

Display model

one image, two images, four images

Image Rotation: X/Y/Z Axis

Multi-slice Visibility

Light&Shade inversion

Smooth

0-4, 4 level

Threshold level

0-129, Step 3

Transparency

1-509, Step 10

Render type

4 kinds, Surface, maximum, minimum, perspective

Extended Imaging

Gain

0-100, Step 2

TGC

8 segment adjustable

Maximum focus point

≥7, which can be moved throughout the whole process

Speckle reduction

0-5, 5 level

Space Compound

0-2, 2 level (Linear probe: 3 level, don’t support cardiac probe)

Dynamic range

30-180, 35 level, Step 5

Line density

Low, Middle, High, 3 level

Frame correlation

0-4, 4 level

Noise reduction

0-5, 5 level

Edge enhancement

0-5, 5 level

Sound power

2-10, 9 level

Grey map

0-67, 67 level

False color

0-67, 67 level

Image style

Soft-Comparison, 2 level

Extended level

Maximum 72 level

Convex probe

9 level

Trans-vaginal probe

72 level

Micro-convex probe

29 level

Cardiac probe

40 level

4D Volume probe

17 level

PS: The screen has real-time display of voice power, probe frequency, dynamic range, pseudo color, grayscale and other 11 parameters can be adjusted

PS: When the probe scan range reaches the maximum, the space synthesized is 0.
